SPARK安装¶
单机版本安装¶
安装环境：ubuntu_16.04+scala_2.12+java_8u191 前置条件：安装java hadoop scala 单机版本安装步骤 1.获取软件安装包。点此获得软件包下载地址.
Note
官方网址提供了如下软件下载版本: Source code: Spark 源码，需要编译才能使用；
Pre-build with user-provided Hadoop: 属于“Hadoop free”版，可应用到任意Hadoop 版本；
Pre-build for Hadoop 2.7 and later: 基于Hadoop 2.7的预先编译版，需要与本机安装的Hadoop版本对应，可选的还有Hadoop 2.6、Hadoop 2.4、Hadoop 2.3、Hadoop1.x、CDH4。
Pre-build with scala 2.12 and user-provide Apache Hadoop.
前面已经自己安装了Hadoop和scala，所以，在“Choose a package type”后面需要选择 “Pre-build with scala 2.12 and user-provide Apache Hadoop.”，因为这个选项的Spark可以应用于任意Hadoop版本，所以，就可以应用到我们已经安装的Hadoop版本。然后，点击“Download Spark”后面的”spark-2.4.0-bin-without-hadoop-scala-2.12.tgz”下载即可。
Spark部署模式主要有四种：Local模式（单机模式）、Standalone模式（使用Spark自带的简单集群管理器）、YARN模式（使用YARN作为集群管理器）和Mesos模式（使用Mesos作为集群管理器）。 这里介绍Local模式（单机模式）的 Spark安装。我们选择Spark 2.4版本，并且假设当前使用用户名hadoop登录了Linux操作系统。
2.解压软件包到安装目录，设置的安装目录为/opt。
# root@ubuntu:/opt# tar -xzvf /home/cecgw/spark-2.4.0-bin-without-hadoop-scala-2.12.tgz -C /opt
# root@ubuntu:/opt# mv spark-2.4.0-bin-without-hadoop-scala-2.12/ spark
- 给文件赋予访问权限.前提，已经创建hadoop用户。
chown -R hadoop:hadoop spark
- 修改spark 配置文件,并配置spark环境变量。
root@ubuntu:/opt/spark# cp ./conf/spark-env.sh.template ./conf/spark-env.sh
root@ubuntu:/opt/spark# vi ./conf/spark-env.sh
export SPARK_DIST_CLASSPATH=$(/opt/hadoop-2.7.7/bin/hadoop classpath)
################################
配置环境变量：
vi /home/hadoop/.bashrc
# set spark environment
export SPARK_HOME=/opt/spark
export PATH=$PATH:$SPARK_HOME/bin
有了上面的配置信息以后，Spark就可以把数据存储到Hadoop分布式文件系统HDFS中，也可以从HDFS中读取数据。如果没有配置上面信息，Spark就只能读写本地数据，无法读写HDFS数据。 配置完成后就可以直接使用，不需要像Hadoop运行启动命令。
- 验证测试.
验证1：
root@ubuntu:/opt/spark# bin/run-example SparkPi 2>&1 | grep "Pi is"
Pi is roughly 3.13639568197841
验证2：
启动进入spark-shell交互式执行环境
root@ubuntu:/opt/spark# ./bin/spark-shell
2018-12-20 16:18:38 WARN NativeCodeLoader:62 - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Spark context Web UI available at http://ubuntu:4040
Spark context available as 'sc' (master = local[*], app id = local-1545293927526).
Spark session available as 'spark'.
Welcome to
____ __
/ __/__ ___ _____/ /__
_\ \/ _ \/ _ `/ __/ '_/
/___/ .__/\_,_/_/ /_/\_\ version 2.4.0
/_/
Using Scala version 2.12.7 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_191)
Type in expressions to have them evaluated.
Type :help for more information.
scala> 3+5
res0: Int = 8
scala> :quit
验证3：Spark是否可以正常访问Ubuntu系统中的本地文件
hadoop@ubuntu:/opt/spark$ ./bin/spark-shell
2018-12-20 16:25:54 WARN NativeCodeLoader:62 - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Spark context Web UI available at http://ubuntu:4040
Spark context available as 'sc' (master = local[*], app id = local-1545294360530).
Spark session available as 'spark'.
Welcome to
____ __
/ __/__ ___ _____/ /__
_\ \/ _ \/ _ `/ __/ '_/
/___/ .__/\_,_/_/ /_/\_\ version 2.4.0
/_/
Using Scala version 2.12.7 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_191)
Type in expressions to have them evaluated.
Type :help for more information.
scala> val line=sc.textFile("file:///home/cecgw/sparktext.txt")
line: org.apache.spark.rdd.RDD[String] = file:///home/cecgw/sparktext.txt MapPartitionsRDD[1] at textFile at <console>:24
scala> println(line.count())
3
scala>
说明可以访问本地文件。
验证4：Spark是否能够正常访问Hadoop中的HDFS
前提：hadoop正常运行。
上传文件到HADOOP.
hadoop@ubuntu:/home/cecgw$ hsdf dfs -mkdir -p /user/hadoop
hadoop@ubuntu:/home/cecgw$ hdfs dfs -mkdir -p /user/hadoop
hadoop@ubuntu:/home/cecgw$ hdfs dfs -put ./sparktext.txt /user/hadoop
hadoop@ubuntu:/home/cecgw$ hdfs dfs -cat /user/hadoop/sparktext.txt
i am cc
you are ready
are you ready?
在Ubuntu的终端中启动进入spark-shell交互式执行环境，去测试Spark读取HDFS数据是否成功:
scala> val line=sc.textFile("hdfs://localhost:9000/user/hadoop/sparktext.txt")
line: org.apache.spark.rdd.RDD[String] = hdfs://localhost:9000/user/hadoop/sparktext.txt MapPartitionsRDD[3] at textFile at <console>:24
scala> println(line.count())
3
scala>
测试成功，可以读取到hdfs上数据。
需要注意的是，如果我们以hadoop用户登录spark-shell，可以将val line=sc.textFile("hdfs://localhost:9000/user/hadoop/sparktext.txt") 路径简化为 val line=sc.textFile("/user/hadoop/sparktext.txt") OR val line=sc.textFile("sparktext.txt"),均可通过验证。
但如果以root 用户登录spark-shell，则需要全路径方可访问。
至此，单机版完成安装。
分布式安装¶
安装环境：ubuntu_16.04+scala_2.12+java_8u191 前置条件：安装java hadoop scala
部署环境情况
master master-0 slaver-1 slaver-2 slaver-3
java_8u191 √ √ √ √ √
hadoop namenode namenode datanode datanode datanode
scala √ √ √ √ √
zookeeper √ √ √
spark master master-ha slaver slaver slaver
安装scala¶
1.获取软件安装包。点此获得软件包下载地址. 2.解压软件包到安装目录，设置的安装目录为/opt。
# tar -xzvf scala-2.12.1.tgz -C /opt
# mv scala-2.12.1.tgz scala
- 给文件赋予访问权限.前提，已经创建hadoop用户。
chown -R hadoop:hadoop scala
- 配置环境变量。并使配置生效。
# vi /home/hadoop/.bashrc # 在文件末尾追加：
export SCALA_HOME=/opt/scala
export PATH=.:$PATH:$JAVA_HOME/bin:$SCALA_HOME/bin
# source /home/hadoop/.bashrc
- 验证测试.
hadoop@ubuntu:/opt$ scala
Welcome to Scala 2.12.1 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_191).
Type in expressions for evaluation. Or try :help.
scala> 4+5
res0: Int = 9
scala> :quit
hadoop@ubuntu:/opt$ scala -version
Scala code runner version 2.12.1 -- Copyright 2002-2016, LAMP/EPFL and Lightbend, Inc.
- 安装上述步骤，在其他节点安装scala。
安装spark¶
- 获取软件安装包。点此获得软件包下载地址.
2.解压软件包到安装目录，设置的安装目录为/opt。
# root@ubuntu:/opt# tar -xzvf /home/cecgw/spark-2.4.0-bin-without-hadoop-scala-2.12.tgz -C /opt
# root@ubuntu:/opt# mv spark-2.4.0-bin-without-hadoop-scala-2.12/ spark
- 给文件赋予访问权限.前提，已经创建hadoop用户。
chown -R hadoop:hadoop spark
- 修改spark 配置文件,并配置spark环境变量。
root@master:/opt/spark/conf# cp spark-env.sh.template spark-env.sh
root@master:/opt/spark/conf# cp spark-defaults.conf.template spark-defaults.conf
root@master:/opt/spark/conf# vi spark-env.sh
export SPARK_DIST_CLASSPATH=$(/opt/hadoop-2.7.7/bin/hadoop classpath)
JAVA_HOME=/usr/lib/jdk
SCALA_HOME=/opt/scala
HADOOP_CONF_DIR=/opt/hadoop-2.7.7/etc/hadoop
HADOOP_HOME=/opt/hadoop-2.7.7
SPARK_DAEMON_JAVA_OPTS="-Dspark.deploy.recoveryMode=ZOOKEEPER -Dspark.deploy.zookeeper.url=slaver-1:2181,slaver-2:2181,slaver-3:2181 -Dspark.deploy.zookeeper.dir=/spark"
root@master:/opt/spark/conf# cp slaves.template slaves
root@master:/opt/spark/conf# vi slaves
# A Spark Worker will be started on each of the machines listed below.
slaver-1
slaver-2
slaver-3
- 配置spark 环境变量
root@master:/opt/spark/conf# vi /home/hadoop-1/.bashrc
export SPARK_HOME=/opt/spark
export PATH=$PATH:$SPARK_HOME/bin
root@master:/opt/spark/conf# su hadoop-1
hadoop-1@master:/opt/spark/conf$ source /home/hadoop-1/.bashrc
- 将安装包复制到其他节点。并修改文件权限。同时按上述步骤配置环境变量。
- 启动spark。
在master节点使用hadoop用户启动spark.
hadoop-1@master:/opt/spark/sbin$ ./start-all.sh
starting org.apache.spark.deploy.master.Master, logging to /opt/spark/logs/spark-hadoop-1-org.apache.spark.deploy.master.Master-1-master.out
slaver-2: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark/logs/spark-hadoop-1-org.apache.spark.deploy.worker.Worker-1-slaver-2.out
slaver-1: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark/logs/spark-hadoop-1-org.apache.spark.deploy.worker.Worker-1-slaver-1.out
slaver-3: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark/logs/spark-hadoop-1-org.apache.spark.deploy.worker.Worker-1-slaver-3.out

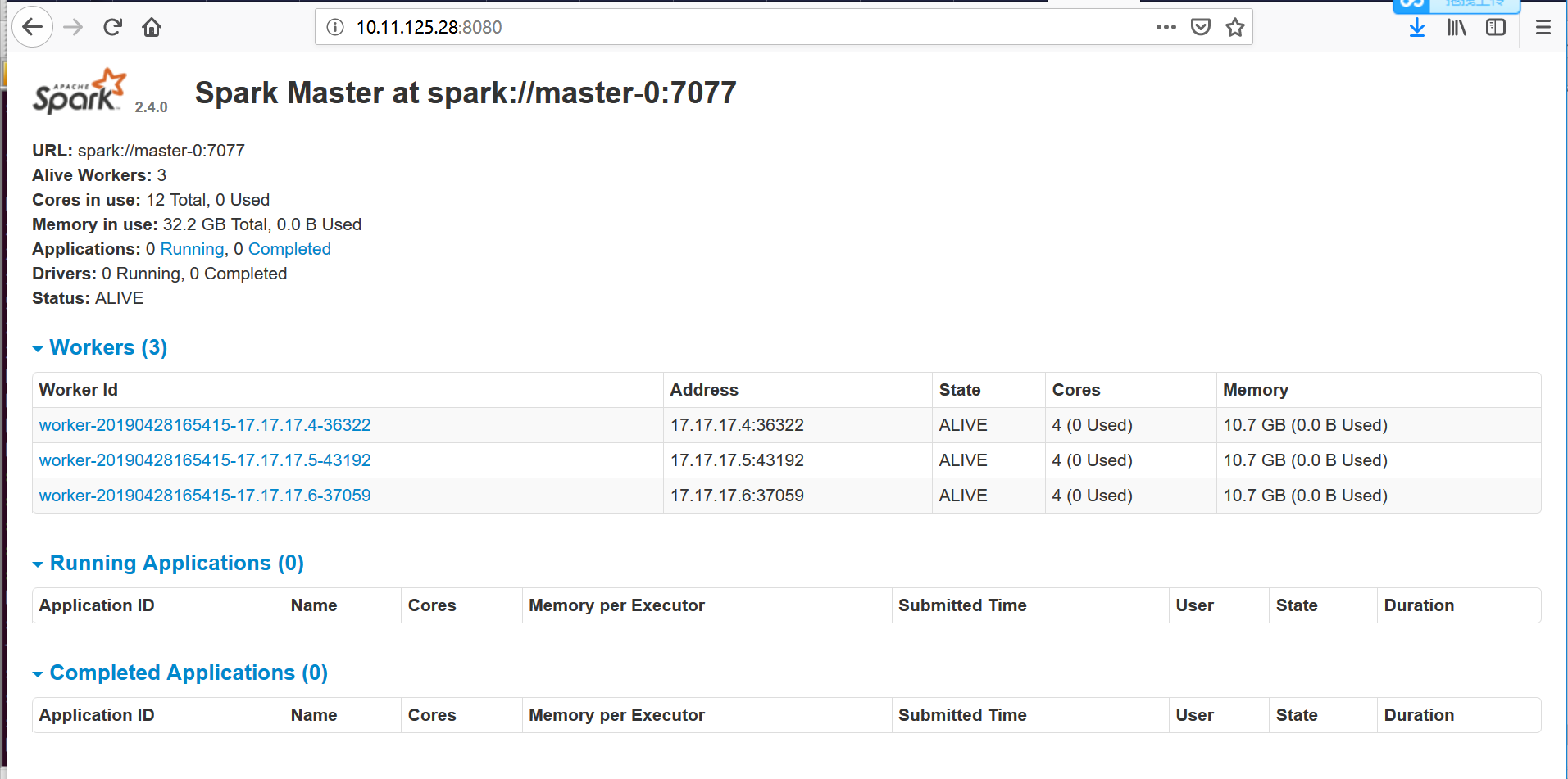

可通过界面查看spark 集群状态。
- 使用spark-shell交互式执行环境验证。
验证1：
root@ubuntu:/opt/spark# bin/run-example SparkPi 2>&1 | grep "Pi is"
Pi is roughly 3.13639568197841
验证2：
启动进入spark-shell交互式执行环境
root@ubuntu:/opt/spark# ./bin/spark-shell
2018-12-20 16:18:38 WARN NativeCodeLoader:62 - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Spark context Web UI available at http://ubuntu:4040
Spark context available as 'sc' (master = local[*], app id = local-1545293927526).
Spark session available as 'spark'.
Welcome to
____ __
/ __/__ ___ _____/ /__
_\ \/ _ \/ _ `/ __/ '_/
/___/ .__/\_,_/_/ /_/\_\ version 2.4.0
/_/
Using Scala version 2.12.7 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_191)
Type in expressions to have them evaluated.
Type :help for more information.
scala> 3+5
res0: Int = 8
scala> :quit
验证3：Spark是否可以正常访问Ubuntu系统中的本地文件
hadoop-1@master:/opt/spark/bin$ spark-shell
2019-04-28 17:30:38 WARN NativeCodeLoader:62 - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Spark context Web UI available at http://master:4040
Spark context available as 'sc' (master = local[*], app id = local-1556443850765).
Spark session available as 'spark'.
Welcome to
____ __
/ __/__ ___ _____/ /__
_\ \/ _ \/ _ `/ __/ '_/
/___/ .__/\_,_/_/ /_/\_\ version 2.4.0
/_/
Using Scala version 2.12.7 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_191)
Type in expressions to have them evaluated.
Type :help for more information.
scala> val line=sc.textFile("file:///home/ubuntu/new-1-0.log")
line: org.apache.spark.rdd.RDD[String] = file:///home/ubuntu/new-1-0.log MapPartitionsRDD[1] at textFile at <console>:24
scala> println(line.count())
26670
scala>
说明可以访问本地文件。
验证4：Spark是否能够正常访问Hadoop中的HDFS
前提：hadoop正常运行。
上传文件到HADOOP.
hadoop@ubuntu:/home/cecgw$ hsdf dfs -mkdir -p /user/hadoop
hadoop@ubuntu:/home/cecgw$ hdfs dfs -mkdir -p /user/hadoop
hadoop@ubuntu:/home/cecgw$ hdfs dfs -put ./new-1-0.log /user/hadoop
在Ubuntu的终端中启动进入spark-shell交互式执行环境，去测试Spark读取HDFS数据是否成功:
scala> val line=sc.textFile("hdfs://cluster-cecgw/user/hadoop/new-1-0.log")
line: org.apache.spark.rdd.RDD[String] = hdfs://cluster-cecgw/user/hadoop/new-1-0.log MapPartitionsRDD[3] at textFile at <console>:24
scala> println(line.count())
26670
scala>
测试成功，可以读取到hdfs上数据。
需要注意的是，如果我们以hadoop用户登录spark-shell，可以将val line=sc.textFile("hdfs://cluster-cecgw/user/hadoop/new-1-0.log") 路径简化为 val line=sc.textFile("/user/hadoop/new-1-0.log") OR val line=sc.textFile("new-1-0.log"),均可通过验证。
但如果以root 用户登录spark-shell，则需要全路径方可访问。
Note
Pre-version。
