Ranger编译¶
本次ranger编译版本为1.2.0，下载地址为http://mirrors.tuna.tsinghua.edu.cn/apache/ranger/1.2.0/apache-ranger-1.2.0.tar.gz
系统环境准备： 1.0 编译操作系统版本为ubuntu 1804，对apt源进行更新。
root@ubuntu:/home/cecgw# uname -a
Linux ubuntu 4.15.0-50-generic #54-Ubuntu SMP Mon May 6 18:46:08 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux
root@ubuntu:/home/cecgw# apt-get update &&dist-upgrade # 对apt源进行更新。
1.1 编译过程中必要的软件包,java,python,gcc,maven,需提前安装好，java离线现在配置即可，其余采用apt-get install * 即可。
root@ubuntu:/home/cecgw# java -version
java version "1.8.0_191"
Java(TM) SE Runtime Environment (build 1.8.0_191-b12)
Java HotSpot(TM) 64-Bit Server VM (build 25.191-b12, mixed mode)
root@ubuntu:/home/cecgw# dpkg -l|grep maven
ii maven 3.6.0-1~18.04.1 all Java software project management and comprehension tool
root@ubuntu:/home/cecgw# dpkg -l|grep gcc
ii gcc 4:7.4.0-1ubuntu2.2 amd64 GNU C compiler
root@ubuntu:/home/cecgw# vi /etc/maven/settings.xml
<mirrors>
<mirror>
<id>mirrorId</id>
<mirrorOf>repositoryId</mirrorOf>
<name>Human Readable Name for this Mirror.</name>
<url>http://my.repository.com/repo/path</url>
</mirror>
-->
<mirror>
<id>aliyun</id>
<mirrorOf>central</mirrorOf>
<name>aliyun</name>
<url>http://maven.aliyun.com/nexus/content/groups/public</url>
</mirror>
<mirror>
<id>repo2</id>
<mirrorOf>central</mirrorOf>
<name>Human Readable Name for this Mirror.</name>
<url>http://repo2.maven.org/maven2</url>
</mirror>
<mirror>
<id>UK</id>
<name>UK Central</name>
<url>http://uk.maven.org/maven2</url>
<mirrorOf>central</mirrorOf>
</mirror>
<mirror>
<id>repo1</id>
<mirrorOf>central</mirrorOf>
<name>Human Readable Name for this Mirror.</name>
<url>http://repo1.maven.org/maven2</url>
</mirror>
<mirror>
<id>repo</id>
<mirrorOf>central</mirrorOf>
<name>Human Readable Name for this Mirror.</name>
<url>http://repo.maven.apache.org/maven2</url>
</mirror>
</mirrors>
1.2 将 apache-ranger-1.2.0.tar.gz 解压到/root目录下，使用root用户进行编译。

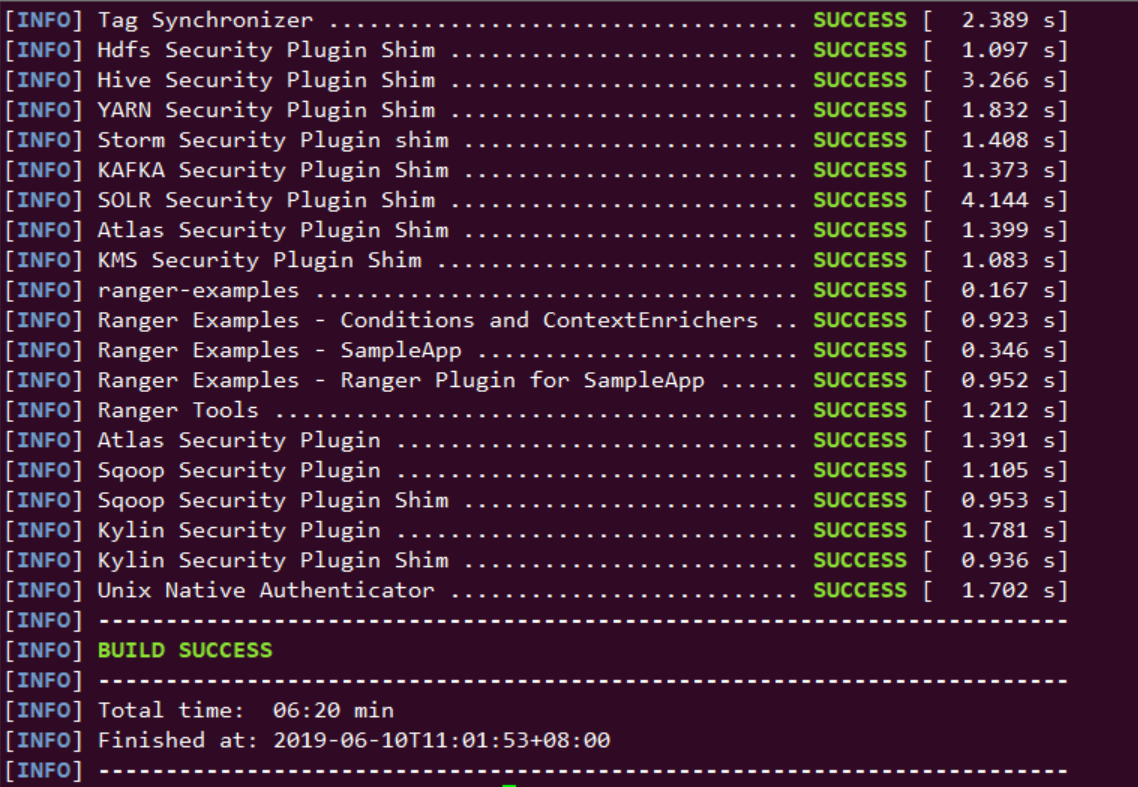

mvn compile package assembly:assembly install -DskipTests -Drat.skip=true
在执行过程中，会在如下目录生成相关的jar包。
root@ubuntu:~/.m2/repository# ls
ant ca commons-cli commons-fileupload dom4j jline oro xml-apis
antlr cglib commons-codec commons-httpclient doxia joda-time regexp xmlenc
aopalliance ch commons-collections commons-io info junit ring-cors xmlpull
asm classworlds commons-configuration commons-lang io log4j sslext xml-resolver
avalon-framework co commons-daemon commons-logging it logkit stax xpp3
backport-util-concurrent com commons-dbcp commons-net javax mysql tomcat
bcel commons-beanutils commons-digester commons-pool javolution net xalan
be commons-chain commons-el commons-validator jaxen org xerces
root@ubuntu:~/.m2/repository/ca/juliusdavies/not-yet-commons-ssl/0.3.9# ls
not-yet-commons-ssl-0.3.9.jar not-yet-commons-ssl-0.3.9.pom _remote.repositories
not-yet-commons-ssl-0.3.9.jar.lastUpdated not-yet-commons-ssl-0.3.9.pom.lastUpdated
not-yet-commons-ssl-0.3.9.jar.sha1 not-yet-commons-ssl-0.3.9.pom.sha1
Note
如果在编译过程中，出现下载不了或者停顿的情况，如若在编译过程中遇到下载不了某些依赖包，可以手动下载后放到指定的目录；也可以暂停编 译，清除（rm -rf）停顿位置的locker文件，再重新从当前步骤编译，编译器会自动从其他源下载。继续编译命令为： mvn compile package assembly:assembly install -DskipTests -Drat.skip=true -rf :credValidator （继续编译项）
编译完成后，会在/root/apache-ranger-1.2.0/target目录下生成应的jar包。即ranger安装包。
root@ubuntu:~/apache-ranger-1.2.0/target# ls
antrun ranger-1.2.0-hdfs-plugin.zip ranger-1.2.0-kylin-plugin.zip ranger-1.2.0-src.zip
archive-tmp ranger-1.2.0-hive-plugin.tar.gz ranger-1.2.0-migration-util.tar.gz ranger-1.2.0-storm-plugin.tar.gz
maven-shared-archive-resources ranger-1.2.0-hive-plugin.zip ranger-1.2.0-migration-util.zip ranger-1.2.0-storm-plugin.zip
ranger-1.2.0-admin.tar.gz ranger-1.2.0-kafka-plugin.tar.gz ranger-1.2.0-ranger-tools.tar.gz ranger-1.2.0-tagsync.tar.gz
ranger-1.2.0-admin.zip ranger-1.2.0-kafka-plugin.zip ranger-1.2.0-ranger-tools.zip ranger-1.2.0-tagsync.zip
ranger-1.2.0-atlas-plugin.tar.gz ranger-1.2.0-kms.tar.gz ranger-1.2.0-solr-plugin.tar.gz ranger-1.2.0-usersync.tar.gz
ranger-1.2.0-atlas-plugin.zip ranger-1.2.0-kms.zip ranger-1.2.0-solr-plugin.zip ranger-1.2.0-usersync.zip
ranger-1.2.0-hbase-plugin.tar.gz ranger-1.2.0-knox-plugin.tar.gz ranger-1.2.0-sqoop-plugin.tar.gz ranger-1.2.0-yarn-plugin.tar.gz
ranger-1.2.0-hbase-plugin.zip ranger-1.2.0-knox-plugin.zip ranger-1.2.0-sqoop-plugin.zip ranger-1.2.0-yarn-plugin.zip
ranger-1.2.0-hdfs-plugin.tar.gz ranger-1.2.0-kylin-plugin.tar.gz ranger-1.2.0-src.tar.gz version

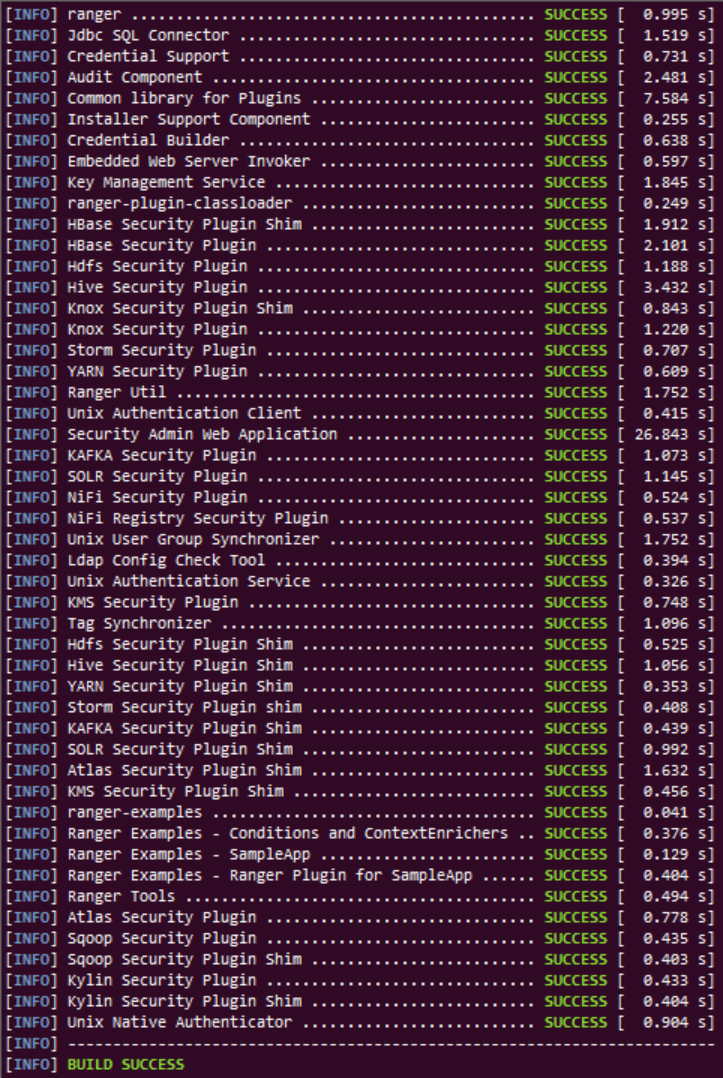

至此，编译完成，得到部署ranger的基本安装包。
1.3 部署拓扑.
ranger-server allinone-bigdata
java √ √
hadoop-namenode √
hadoop-datanode
hive-server2 √
hive-metadata √
hive-mysql
solr √
zookeeper √ √
ranger-user-sync √ √
ranger-hdfs-plugin √
ranger-hive-plugin √
Ranger安装¶
软件准备：ranger-server端 需要安装mysql,java,solr,zookeeper.
1.0 安装java,配置root及cecgw用户java环境变量.(过程略)
1.1 安装mariadb并设置ranger用户名及密码.
apt-get install mariadb-server # 安装mariadb-server
$sudo mysql -u root
mysql> USE mysql;
mysql> UPDATE user SET plugin='mysql_native_password' WHERE user='root';
mysql> FLUSH PRIVILEGES;
mysql> exit; # 设置密码登录
MariaDB [(none)]> create database ranger;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON *.* TO 'rangeradmin'@'%'IDENTIFIED BY 'xxxx' WITH GRANT OPTION;
MariaDB [(none)]> FLUSH PRIVILEGES; # 创建rangeradmin 并验证登录。
否则在后续按照会报“create table: Specified key was too long; max key length is 767 bytes”错误。
#将如下文件 utf8mb4 修改为utf8。
root@ranger-server:/etc/mysql/mariadb.conf.d# grep 'utf8mb4' ./ -R
./50-mysql-clients.cnf:#default-character-set = utf8mb4
./50-server.cnf:#character-set-server = utf8mb4
./50-server.cnf:#collation-server = utf8mb4_general_ci
./50-client.cnf:#default-character-set = utf8mb4
#修改如下：
root@ranger-server:/etc/mysql/mariadb.conf.d# grep 'utf8' ./ -R
./50-mysql-clients.cnf:default-character-set = utf8
./50-mysql-clients.cnf:#default-character-set = utf8mb4
./50-server.cnf:# utf8 4-byte character set. See also client.cnf
./50-server.cnf:character-set-server = utf8
./50-server.cnf:collation-server = utf8_general_ci
./50-server.cnf:#character-set-server = utf8mb4
./50-server.cnf:#collation-server = utf8mb4_general_ci
./50-client.cnf:default-character-set = utf8
./50-client.cnf:#default-character-set = utf8mb4
# 重启mysql。
service mysql restart
1.3 下载mysql-connector-java-5.1.47.tar.gz(https://dev.mysql.com/downloads/file/?id=480090),并解压到/opt目录下.
root@ubuntu:/opt# ls
mysql-connector-java-5.1.47.jar ranger-1.2.0-admin
1.4 在本地安装zookeeper，并正确配置，启动。(过程略).
1.5 下载solr并解压到 /opt目录下。本次安装下载的solr版本为8.1.1.
下载地址为：(https://www.apache.org/dyn/closer.lua/lucene/solr/8.1.1/solr-8.1.1-src.tgz)
root@ranger-server:/opt# cp /home/ubuntu/solr-8.1.1.tgz .
root@ranger-server:/opt# tar -xzvf solr-8.1.1.tgz
root@ranger-server:/opt# mv solr-8.1.1 solr
1.5 修改sql文件，防止字段超长。
ubuntu@ranger-server:/opt/ranger-1.2.0-admin/db/mysql/optimized/current$ vi ranger_core_db_mysql.sql
在文件头添加：SET FOREIGN_KEY_CHECKS=0;
在文件尾添加：SET FOREIGN_KEY_CHECKS=1;
MariaDB [(none)]> show variables like '%innodb_large_prefix%';
+---------------------+-------+
| Variable_name | Value |
+---------------------+-------+
| innodb_large_prefix | OFF |
+---------------------+-------+
1 row in set (0.00 sec)
MariaDB [(none)]> set global innodb_large_prefix=on;
Query OK, 0 rows affected (0.00 sec)
MariaDB [(none)]> show variables like '%innodb_file_format%';
+--------------------------+-----------+
| Variable_name | Value |
+--------------------------+-----------+
| innodb_file_format | Antelope |
| innodb_file_format_check | ON |
| innodb_file_format_max | Barracuda |
+--------------------------+-----------+
3 rows in set (0.00 sec)
MariaDB [(none)]> set global innodb_file_format=Barracuda;
Query OK, 0 rows affected (0.00 sec)
1.6 配置ranger-server配置文件。
ubuntu@ranger-server:/opt/ranger-1.2.0-admin$ grep -vE '^#|^$' install.properties
PYTHON_COMMAND_INVOKER=python
DB_FLAVOR=MYSQL
SQL_CONNECTOR_JAR=/opt/mysql-connector-java-5.1.47.jar #配置合适路径
db_root_user=root # mysql 数据库root用户
db_root_password=xxxx # mysql 数据库root 用户密码
db_host=localhost # mysql 数据库 ip地址
db_ssl_enabled=false
db_ssl_required=false
db_ssl_verifyServerCertificate=false
db_ssl_auth_type=2-way
javax_net_ssl_keyStore=
javax_net_ssl_keyStorePassword=
javax_net_ssl_trustStore=
javax_net_ssl_trustStorePassword=
db_name=ranger # ranger使用的数据库名称
db_user=rangeradmin # 连接 ranger数据库的用户名
db_password=xxxx # rangeradmin 用户密码
rangerAdmin_password=
rangerTagsync_password=
rangerUsersync_password=
keyadmin_password=
audit_store=solr # 日志存储采用的数据库名称 在此使用solr
audit_solr_urls=http://ranger-server:8983/solr/ranger_audits # solr 访问地址
audit_solr_user=solr # 访问solr的用户名
audit_solr_password=solr #访问solr的密码
audit_solr_zookeepers=ranger-server:2181 # solr 使用的zookeeper地址
policymgr_external_url=http://localhost:6080 #策略地址
policymgr_http_enabled=true
policymgr_https_keystore_file=
policymgr_https_keystore_keyalias=rangeradmin
policymgr_https_keystore_password=
policymgr_supportedcomponents=
unix_user=cecgw # linux 用户名
unix_user_pwd=xxxx # linux 密码
unix_group=cecgw # ubuntu 用户组
authentication_method=NONE
remoteLoginEnabled=true
authServiceHostName=localhost
authServicePort=5151
ranger_unixauth_keystore=keystore.jks
ranger_unixauth_keystore_password=password
ranger_unixauth_truststore=cacerts
ranger_unixauth_truststore_password=changeit
xa_ldap_url=
xa_ldap_userDNpattern=
xa_ldap_groupSearchBase=
xa_ldap_groupSearchFilter=
xa_ldap_groupRoleAttribute=
xa_ldap_base_dn=
xa_ldap_bind_dn=
xa_ldap_bind_password=
xa_ldap_referral=
xa_ldap_userSearchFilter=
xa_ldap_ad_domain=
xa_ldap_ad_url=
xa_ldap_ad_base_dn=
xa_ldap_ad_bind_dn=
xa_ldap_ad_bind_password=
xa_ldap_ad_referral=
xa_ldap_ad_userSearchFilter=
spnego_principal=
spnego_keytab=
token_valid=30
cookie_domain=
cookie_path=/
admin_principal=
admin_keytab=
lookup_principal=
lookup_keytab=
hadoop_conf=/etc/hadoop/conf
sso_enabled=false
sso_providerurl=https://127.0.0.1:8443/gateway/knoxsso/api/v1/websso
sso_publickey=
RANGER_ADMIN_LOG_DIR=$PWD
RANGER_PID_DIR_PATH=/var/run/ranger
XAPOLICYMGR_DIR=$PWD
app_home=$PWD/ews/webapp
TMPFILE=$PWD/.fi_tmp
LOGFILE=$PWD/logfile
LOGFILES="$LOGFILE"
JAVA_BIN='java'
JAVA_VERSION_REQUIRED='1.7'
JAVA_ORACLE='Java(TM) SE Runtime Environment'
mysql_core_file=db/mysql/optimized/current/ranger_core_db_mysql.sql
mysql_audit_file=db/mysql/xa_audit_db.sql
oracle_core_file=db/oracle/optimized/current/ranger_core_db_oracle.sql
oracle_audit_file=db/oracle/xa_audit_db_oracle.sql
postgres_core_file=db/postgres/optimized/current/ranger_core_db_postgres.sql
postgres_audit_file=db/postgres/xa_audit_db_postgres.sql
sqlserver_core_file=db/sqlserver/optimized/current/ranger_core_db_sqlserver.sql
sqlserver_audit_file=db/sqlserver/xa_audit_db_sqlserver.sql
sqlanywhere_core_file=db/sqlanywhere/optimized/current/ranger_core_db_sqlanywhere.sql
sqlanywhere_audit_file=db/sqlanywhere/xa_audit_db_sqlanywhere.sql
cred_keystore_filename=$app_home/WEB-INF/classes/conf/.jceks/rangeradmin.jceks

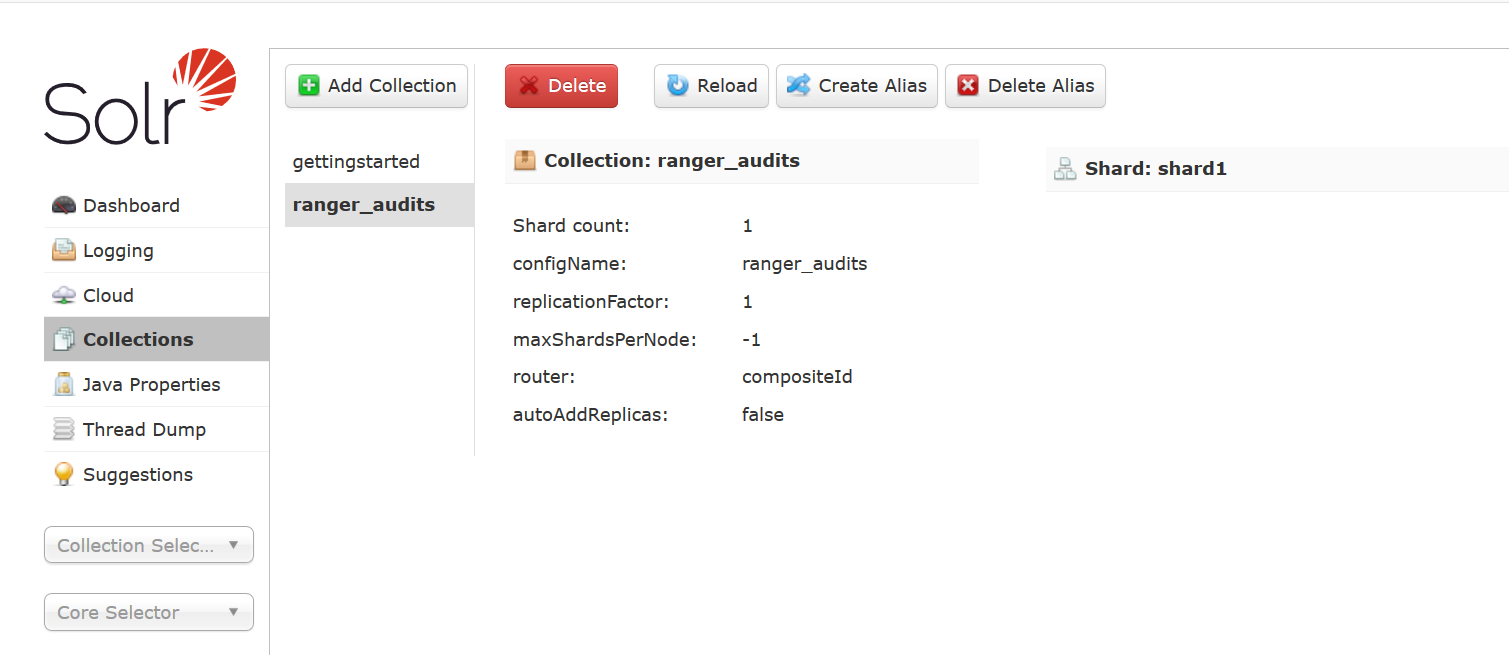

1.8 配置ranger-solr配置文件,并启动solr.
1.8.1 配置ranger-server配置文件.
root@ranger-server:/opt/ranger-1.2.0-admin/contrib/solr_for_audit_setup# grep -vE '^#|^$' install.properties
SOLR_USER=cecgw
SOLR_GROUP=cecgw
MAX_AUDIT_RETENTION_DAYS=90
SOLR_INSTALL=false
SOLR_DOWNLOAD_URL=
SOLR_INSTALL_FOLDER=/opt/solr
SOLR_RANGER_HOME=/opt/solr/ranger_audit_server
SOLR_RANGER_PORT=6083
SOLR_DEPLOYMENT=standalone
SOLR_RANGER_DATA_FOLDER=/opt/solr/ranger_audit_server/data
SOLR_ZK=
SOLR_HOST_URL=http://`hostname -f`:${SOLR_RANGER_PORT}
SOLR_SHARDS=1
SOLR_REPLICATION=1
SOLR_LOG_FOLDER=/var/log/solr/ranger_audits
SOLR_RANGER_COLLECTION=ranger_audits
SOLR_MAX_MEM=2g
配置完成后，执行setip.sh文件.
执行完成后，将在下生成ranger_audit_server文件夹.
1.8.2 使用cecgw用户启动zookeeper.
1.8.3 检查操作系统limits参数，并调整.
cecgw@ranger-server:/opt/zookeeper-3.4.12/bin$ ulimit -a
core file size (blocks, -c) 0
data seg size (kbytes, -d) unlimited
scheduling priority (-e) 0
file size (blocks, -f) unlimited
pending signals (-i) 23753
max locked memory (kbytes, -l) 16384
max memory size (kbytes, -m) unlimited
open files (-n) 1024
pipe size (512 bytes, -p) 8
POSIX message queues (bytes, -q) 819200
real-time priority (-r) 0
stack size (kbytes, -s) 8192
cpu time (seconds, -t) unlimited
max user processes (-u) 23753
virtual memory (kbytes, -v) unlimited
file locks (-x) unlimited
调整limits参数.
使用root 用户修改：
vi /etc/security/limits.conf #在文件尾添加：
cecgw soft nofile 65535
cecgw hard nofile 65535
cecgw soft nproc 65535
cecgw hard nproc 65535
vi vi /etc/pam.d/su # 确保如下未被注释
session required pam_limits.so
退出当前shell,重新使用cecgw用户连入检查.
Last login: Wed Jul 24 09:33:31 2019 from 192.168.121.1
cecgw@ranger-server:~$ ulimit -a
core file size (blocks, -c) 0
data seg size (kbytes, -d) unlimited
scheduling priority (-e) 0
file size (blocks, -f) unlimited
pending signals (-i) 23753
max locked memory (kbytes, -l) 16384
max memory size (kbytes, -m) unlimited
open files (-n) 65535
pipe size (512 bytes, -p) 8
POSIX message queues (bytes, -q) 819200
real-time priority (-r) 0
stack size (kbytes, -s) 8192
cpu time (seconds, -t) unlimited
max user processes (-u) 65535
virtual memory (kbytes, -v) unlimited
file locks (-x) unlimited
1.8.4 使用cecgw用户启动 solr。
cecgw@ranger-server:/opt/solr/bin$ ./solr start -e cloud -z ranger-server:2181 -noprompt
Welcome to the SolrCloud example!
Starting up 2 Solr nodes for your example SolrCloud cluster.
Creating Solr home directory /opt/solr/example/cloud/node1/solr
Cloning /opt/solr/example/cloud/node1 into
/opt/solr/example/cloud/node2
Starting up Solr on port 8983 using command:
"/opt/solr/bin/solr" start -cloud -p 8983 -s "/opt/solr/example/cloud/node1/solr" -z ranger-server:2181
Waiting up to 180 seconds to see Solr running on port 8983 [-]
Started Solr server on port 8983 (pid=2357). Happy searching!
Starting up Solr on port 7574 using command:
"/opt/solr/bin/solr" start -cloud -p 7574 -s "/opt/solr/example/cloud/node2/solr" -z ranger-server:2181
Waiting up to 180 seconds to see Solr running on port 7574 [\]
Started Solr server on port 7574 (pid=2585). Happy searching!
INFO - 2019-07-24 10:20:29.153; org.apache.solr.common.cloud.ConnectionManager; zkClient has connected
INFO - 2019-07-24 10:20:29.183; org.apache.solr.common.cloud.ZkStateReader; Updated live nodes from ZooKeeper... (0) -> (2)
INFO - 2019-07-24 10:20:29.228; org.apache.solr.client.solrj.impl.ZkClientClusterStateProvider; Cluster at ranger-server:2181 ready
Created collection 'gettingstarted' with 2 shard(s), 2 replica(s) with config-set 'gettingstarted'
Enabling auto soft-commits with maxTime 3 secs using the Config API
POSTing request to Config API: http://localhost:8983/solr/gettingstarted/config
{"set-property":{"updateHandler.autoSoftCommit.maxTime":"3000"}}
Successfully set-property updateHandler.autoSoftCommit.maxTime to 3000
SolrCloud example running, please visit: http://localhost:8983/solr
1.8.5 创建ranger_audits collection.
cecgw@ranger-server:/opt/solr/bin$ ./solr create_collection -c ranger_audits -d /opt/solr/ranger_audit_server/ranger_audits/conf -shards 1 -replicationFactor 1
Created collection 'ranger_audits' with 1 shard(s), 1 replica(s) with config-set 'ranger_audits'
1.9 启动 ranger_server.
1.9.1 使用root执行.
root@ranger-server:/opt/ranger-1.2.0-admin# ./setup.sh
2019-07-24 10:32:28,143 --------- Running Ranger PolicyManager Web Application Install Script ---------
2019-07-24 10:32:28,146 [I] uname=Linux
2019-07-24 10:32:28,148 [I] hostname=ranger-server
2019-07-24 10:32:28,152 [I] DB_FLAVOR=MYSQL
2019-07-24 10:32:28,154 [I] Audit source=solr
2019-07-24 10:32:28,157 [I] Checking distribution name..
........
2019-07-24 10:33:21,726 [JISQL] /usr/lib/jdk/bin/java -cp /opt/mysql-connector-java-5.1.47.jar:/opt/ranger-1.2.0-admin/jisql/lib/* org.apache.util.sql.Jisql -driver mysqlconj -cstring jdbc:mysql://localhost/ranger -u 'rangeradmin' -p '********' -noheader -trim -c \; -query "SELECT version();"
2019-07-24 10:33:22,197 [I] Checking connection passed.
Installation of Ranger PolicyManager Web Application is completed.
1.9.2 启动ranger-server.
root@ranger-server:/opt/ranger-1.2.0-admin# ranger-admin start
Starting Apache Ranger Admin Service
Apache Ranger Admin Service with pid 9918 has started.
启动成功后，可通过 http:6080端口访问，使用admin:admin登录.
Ranger使用¶
我们将以hdfs以及hive为例，展示ranger使用.
前置条件，安装大数据集群。
部署拓扑¶
ranger-server allinone-bigdata
java √ √
hadoop-namenode √
hadoop-datanode
hive-server2 √
hive-metadata √
hive-mysql
solr √
zookeeper √ √
ranger-user-sync √ √
ranger-hdfs-plugin √
ranger-hive-plugin √
ranger tag-user-sync服务安装及使用¶
1.0 在ranger-server节点安装ranger-sync-service.
root@ranger-server:/opt/ranger-1.2.0-usersync# tar -xzvf /home/cecgw/ranger-1.2.0-usersync.tar.gz -C .
1.1 配置ranger-sync配置文件.
root@ranger-server:/opt/ranger-1.2.0-usersync# grep -vE '^#|^$' install.properties
ranger_base_dir = /etc/ranger
POLICY_MGR_URL = http://ranger-server:6080
SYNC_SOURCE = unix
MIN_UNIX_USER_ID_TO_SYNC = 500
MIN_UNIX_GROUP_ID_TO_SYNC = 500
SYNC_INTERVAL = # 设置系统用户发现间隔时间.默认为360s
unix_user=root #
unix_group=root #
rangerUsersync_password=xxxx # !注意与控制台配置的密码一致.
usersync_principal=
usersync_keytab=
hadoop_conf=/etc/hadoop/conf
CRED_KEYSTORE_FILENAME=/etc/ranger/usersync/conf/rangerusersync.jceks
AUTH_SSL_ENABLED=false
AUTH_SSL_KEYSTORE_FILE=/etc/ranger/usersync/conf/cert/unixauthservice.jks
AUTH_SSL_KEYSTORE_PASSWORD=UnIx529p
AUTH_SSL_TRUSTSTORE_FILE=
AUTH_SSL_TRUSTSTORE_PASSWORD=
ROLE_ASSIGNMENT_LIST_DELIMITER = &
USERS_GROUPS_ASSIGNMENT_LIST_DELIMITER = :
USERNAME_GROUPNAME_ASSIGNMENT_LIST_DELIMITER = ,
GROUP_BASED_ROLE_ASSIGNMENT_RULES =
SYNC_LDAP_URL =
SYNC_LDAP_BIND_DN =
SYNC_LDAP_BIND_PASSWORD =
SYNC_LDAP_DELTASYNC =
SYNC_LDAP_SEARCH_BASE =
SYNC_LDAP_USER_SEARCH_BASE =
SYNC_LDAP_USER_SEARCH_SCOPE = sub
SYNC_LDAP_USER_OBJECT_CLASS = person
SYNC_LDAP_USER_SEARCH_FILTER =
SYNC_LDAP_USER_NAME_ATTRIBUTE = cn
SYNC_LDAP_USER_GROUP_NAME_ATTRIBUTE = memberof,ismemberof
SYNC_LDAP_USERNAME_CASE_CONVERSION=lower
SYNC_LDAP_GROUPNAME_CASE_CONVERSION=lower
logdir=logs
USERSYNC_PID_DIR_PATH=/var/run/ranger
SYNC_GROUP_SEARCH_ENABLED=
SYNC_GROUP_USER_MAP_SYNC_ENABLED=
SYNC_GROUP_SEARCH_BASE=
SYNC_GROUP_SEARCH_SCOPE=
SYNC_GROUP_OBJECT_CLASS=
SYNC_LDAP_GROUP_SEARCH_FILTER=
SYNC_GROUP_NAME_ATTRIBUTE=
SYNC_GROUP_MEMBER_ATTRIBUTE_NAME=
SYNC_PAGED_RESULTS_ENABLED=
SYNC_PAGED_RESULTS_SIZE=
SYNC_LDAP_REFERRAL =ignore
1.2 执行setup.sh文件.
root@ranger-server:/opt/ranger-1.2.0-usersync# ./setup.sh
Direct Key not found:hadoop_conf
Direct Key not found:ranger_base_dir
Direct Key not found:USERSYNC_PID_DIR_PATH
Direct Key not found:rangerUsersync_password
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore /etc/ranger/usersync/conf/cert/unixauthservice.jks -destkeystore /etc/ranger/usersync/conf/cert/unixauthservice.jks -deststoretype pkcs12".
log4j:WARN No appenders could be found for logger (org.apache.hadoop.util.Shell).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder".
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See http://www.slf4j.org/codes.html#StaticLoggerBinder for further details.
usersync.ssl.key.password has been successfully created.
org.apache.hadoop.security.alias.JavaKeyStoreProvider has been updated.
log4j:WARN No appenders could be found for logger (org.apache.hadoop.util.Shell).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder".
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See http://www.slf4j.org/codes.html#StaticLoggerBinder for further details.
ranger.usersync.ldap.bindalias has been successfully created.
org.apache.hadoop.security.alias.JavaKeyStoreProvider has been updated.
log4j:WARN No appenders could be found for logger (org.apache.hadoop.util.Shell).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder".
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See http://www.slf4j.org/codes.html#StaticLoggerBinder for further details.
usersync.ssl.truststore.password has been successfully created.
org.apache.hadoop.security.alias.JavaKeyStoreProvider has been updated.
log4j:WARN No appenders could be found for logger (org.apache.hadoop.util.Shell).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder".
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See http://www.slf4j.org/codes.html#StaticLoggerBinder for further details.
ranger.usersync.policymgr.password has been successfully created.
org.apache.hadoop.security.alias.JavaKeyStoreProvider has been updated.
WARNING: Unix Authentication Program (/opt/ranger-1.2.0-usersync/native/pamCredValidator.uexe) is not available for setting chmod(4550), chown(root:root)
Creating ranger-usersync-env-logdir.sh file
Creating ranger-usersync-env-hadoopconfdir.sh file
Creating ranger-usersync-env-piddir.sh file
Creating ranger-usersync-env-confdir.sh file
WARN: core-site.xml file not found in provided hadoop conf path...
1.3 启动user-sync 服务.
root@ranger-server:/opt/ranger-1.2.0-usersync# ./ranger-usersync-services.sh start
Starting Apache Ranger Usersync Service
Apache Ranger Usersync Service with pid 10131 has started.
1.4 检查服务是否运行成功.

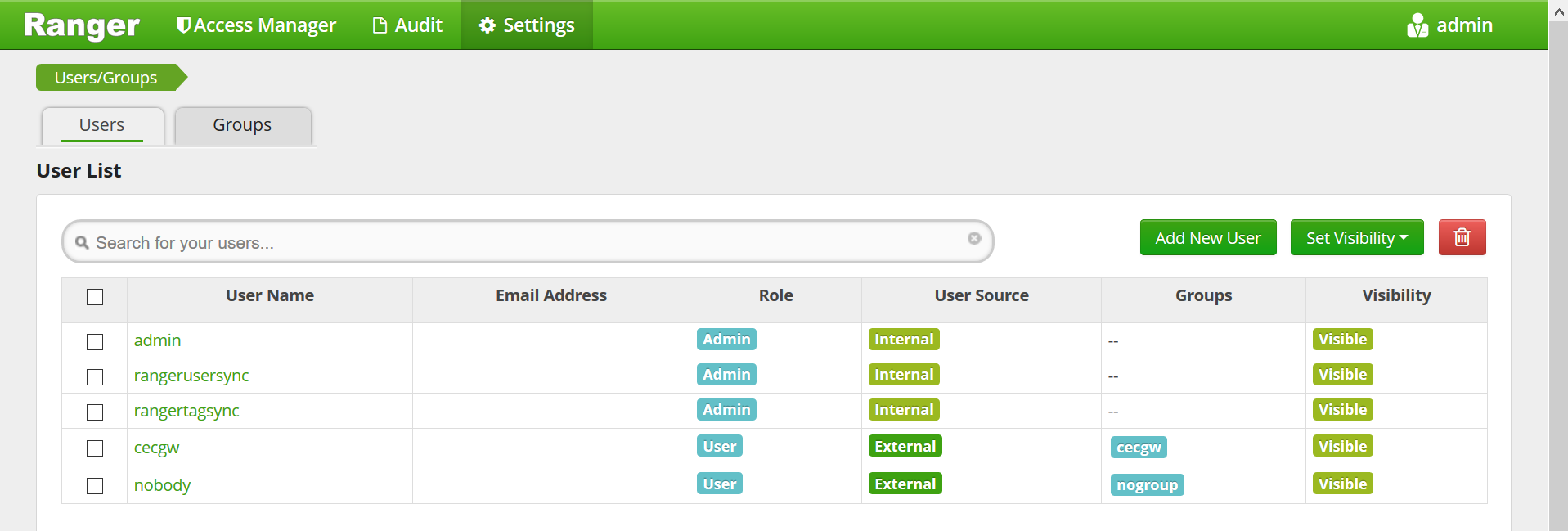

登录ranger管理控制台，检查是否同步操作系统用户到ranger-server.
1.5 在其他节点安装步骤同上.
ranger-hdfs-hook服务安装及使用¶
安装节点，hadoop namenode节点. 前置条件：hadoop 正常运行.
1.0 在hadoop namenode节点编辑core-site.xml文件，添加如下内容，重启hadoop集群：
<property>
<name>hadoop.proxyuser.hadoop.hosts</name>
<value>*</value>
</property>
<property>
<name>hadoop.proxyuser.hadoop.groups</name>
<value>*</value>
</property>
1.1 在hadoop节点部署ranger-1.2.0-hdfs-plugin.
tar -xzvf /home/cecgw/ranger-1.2.0-hdfs-plugin.tar.gz -C /opt
1.2 配置plugin配置文件.
root@ubuntu:/opt/ranger-hook/ranger-1.2.0-hdfs-plugin# grep -vE '^#|^$' install.properties
POLICY_MGR_URL=http://192.168.121.131:6080 # ranger server

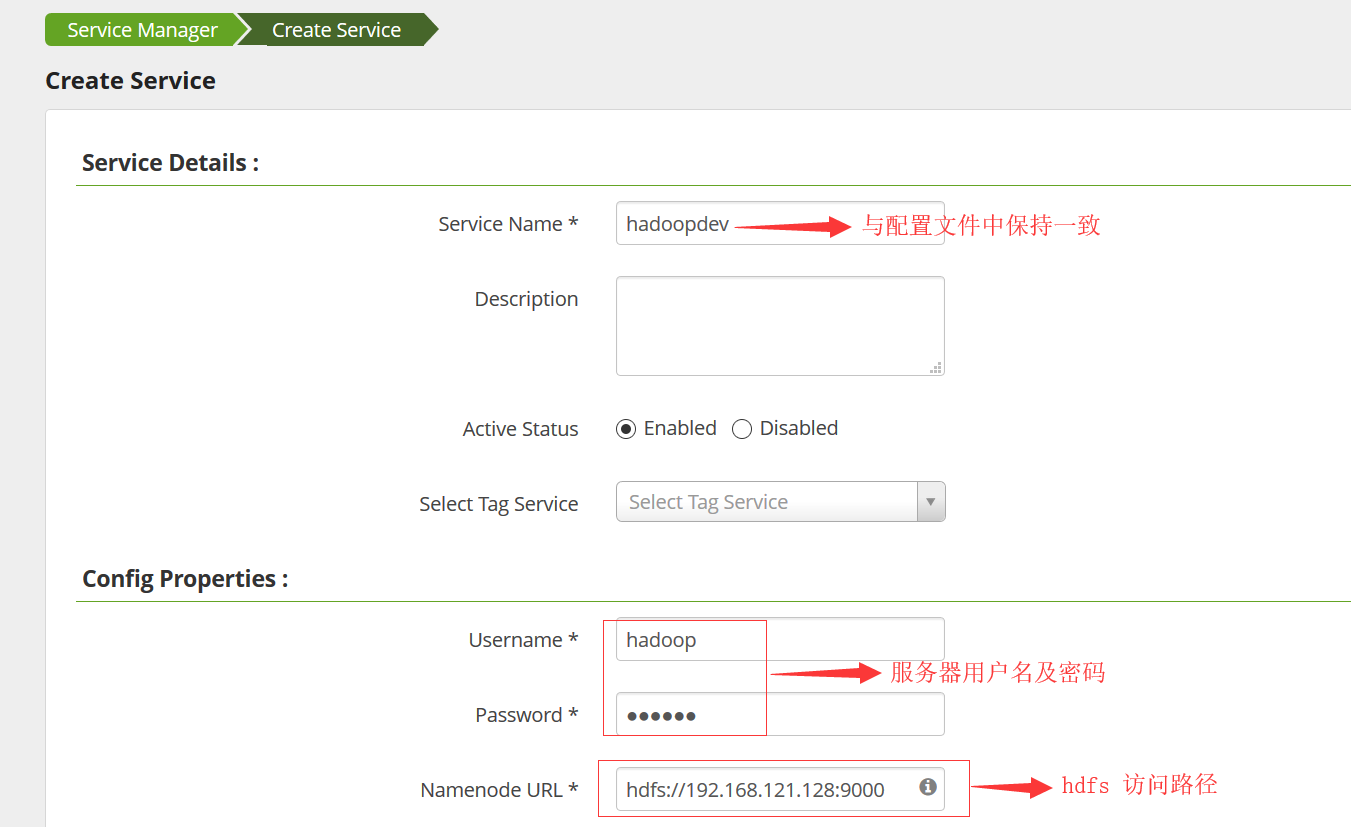

REPOSITORY_NAME=hadoopdev #注意需要与ranger 控制台添加的hdfs service 名称一致.
COMPONENT_INSTALL_DIR_NAME=/opt/hadoop-2.7.7 # hadoop 安装目录
XAAUDIT.SOLR.ENABLE=true
XAAUDIT.SOLR.URL=http://192.168.121.131:8983/solr/ranger_audits # solr服务API.
XAAUDIT.SOLR.USER=NONE
XAAUDIT.SOLR.PASSWORD=NONE
XAAUDIT.SOLR.ZOOKEEPER=NONE
XAAUDIT.SOLR.FILE_SPOOL_DIR=/var/log/hadoop/hdfs/audit/solr/spool
XAAUDIT.HDFS.ENABLE=false
XAAUDIT.HDFS.HDFS_DIR=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit
XAAUDIT.HDFS.FILE_SPOOL_DIR=/var/log/hadoop/hdfs/audit/hdfs/spool
XAAUDIT.HDFS.AZURE_ACCOUNTNAME=__REPLACE_AZURE_ACCOUNT_NAME
XAAUDIT.HDFS.AZURE_ACCOUNTKEY=__REPLACE_AZURE_ACCOUNT_KEY
XAAUDIT.HDFS.AZURE_SHELL_KEY_PROVIDER=__REPLACE_AZURE_SHELL_KEY_PROVIDER
XAAUDIT.HDFS.AZURE_ACCOUNTKEY_PROVIDER=__REPLACE_AZURE_ACCOUNT_KEY_PROVIDER
XAAUDIT.HDFS.IS_ENABLED=false
XAAUDIT.HDFS.DESTINATION_DIRECTORY=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit/%app-type%/%time:yyyyMMdd%
XAAUDIT.HDFS.LOCAL_BUFFER_DIRECTORY=__REPLACE__LOG_DIR/hadoop/%app-type%/audit
XAAUDIT.HDFS.LOCAL_ARCHIVE_DIRECTORY=__REPLACE__LOG_DIR/hadoop/%app-type%/audit/archive
XAAUDIT.HDFS.DESTINTATION_FILE=%hostname%-audit.log
XAAUDIT.HDFS.DESTINTATION_FLUSH_INTERVAL_SECONDS=900
XAAUDIT.HDFS.DESTINTATION_ROLLOVER_INTERVAL_SECONDS=86400
XAAUDIT.HDFS.DESTINTATION_OPEN_RETRY_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_FILE=%time:yyyyMMdd-HHmm.ss%.log
XAAUDIT.HDFS.LOCAL_BUFFER_FLUSH_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_ROLLOVER_INTERVAL_SECONDS=600
XAAUDIT.HDFS.LOCAL_ARCHIVE_MAX_FILE_COUNT=10
XAAUDIT.SOLR.IS_ENABLED=true
XAAUDIT.SOLR.MAX_QUEUE_SIZE=1
XAAUDIT.SOLR.MAX_FLUSH_INTERVAL_MS=1000
XAAUDIT.SOLR.SOLR_URL=http://192.168.121.131:8983/solr/ranger_audits
SSL_KEYSTORE_FILE_PATH=/etc/hadoop/conf/ranger-plugin-keystore.jks
SSL_KEYSTORE_PASSWORD=myKeyFilePassword
SSL_TRUSTSTORE_FILE_PATH=/etc/hadoop/conf/ranger-plugin-truststore.jks
SSL_TRUSTSTORE_PASSWORD=changeit
CUSTOM_USER=hdfs
CUSTOM_GROUP=hadoop
1.3 启动ranger-hdfs-plugin，并重启hadoop.
root@ubuntu:/opt/ranger-hook/ranger-1.2.0-hdfs-plugin# ./enable-hdfs-plugin.sh
Custom group is available, using default user and custom group.
+ Wed Jul 24 14:10:40 HKT 2019 : hadoop: lib folder=/opt/hadoop-2.7.7/share/hadoop/hdfs/lib conf folder=/opt/hadoop-2.7.7/etc/hadoop
+ Wed Jul 24 14:10:40 HKT 2019 : Saving /opt/hadoop-2.7.7/etc/hadoop/ranger-hdfs-audit.xml to /opt/hadoop-2.7.7/etc/hadoop/.ranger-hdfs-audit.xml.20190724-141040 ...
+ Wed Jul 24 14:10:41 HKT 2019 : Saving /opt/hadoop-2.7.7/etc/hadoop/ranger-hdfs-security.xml to /opt/hadoop-2.7.7/etc/hadoop/.ranger-hdfs-security.xml.20190724-141040 ...
+ Wed Jul 24 14:10:41 HKT 2019 : Saving /opt/hadoop-2.7.7/etc/hadoop/ranger-policymgr-ssl.xml to /opt/hadoop-2.7.7/etc/hadoop/.ranger-policymgr-ssl.xml.20190724-141040 ...
+ Wed Jul 24 14:10:41 HKT 2019 : Saving current config file: /opt/hadoop-2.7.7/etc/hadoop/hdfs-site.xml to /opt/hadoop-2.7.7/etc/hadoop/.hdfs-site.xml.20190724-141040 ...
+ Wed Jul 24 14:10:41 HKT 2019 : Saving current config file: /opt/hadoop-2.7.7/etc/hadoop/ranger-hdfs-audit.xml to /opt/hadoop-2.7.7/etc/hadoop/.ranger-hdfs-audit.xml.20190724-141040 ...
+ Wed Jul 24 14:10:42 HKT 2019 : Saving current config file: /opt/hadoop-2.7.7/etc/hadoop/ranger-hdfs-security.xml to /opt/hadoop-2.7.7/etc/hadoop/.ranger-hdfs-security.xml.20190724-141040 ...
+ Wed Jul 24 14:10:42 HKT 2019 : Saving current config file: /opt/hadoop-2.7.7/etc/hadoop/ranger-policymgr-ssl.xml to /opt/hadoop-2.7.7/etc/hadoop/.ranger-policymgr-ssl.xml.20190724-141040 ...
+ Wed Jul 24 14:10:42 HKT 2019 : Saving lib file: /opt/hadoop-2.7.7/share/hadoop/hdfs/lib/ranger-hdfs-plugin-impl to /opt/hadoop-2.7.7/share/hadoop/hdfs/lib/.ranger-hdfs-plugin-impl.20190724141042 ...
+ Wed Jul 24 14:10:42 HKT 2019 : Saving lib file: /opt/hadoop-2.7.7/share/hadoop/hdfs/lib/ranger-hdfs-plugin-shim-1.2.0.jar to /opt/hadoop-2.7.7/share/hadoop/hdfs/lib/.ranger-hdfs-plugin-shim-1.2.0.jar.20190724141042 ...
+ Wed Jul 24 14:10:42 HKT 2019 : Saving lib file: /opt/hadoop-2.7.7/share/hadoop/hdfs/lib/ranger-plugin-classloader-1.2.0.jar to /opt/hadoop-2.7.7/share/hadoop/hdfs/lib/.ranger-plugin-classloader-1.2.0.jar.20190724141042 ...
+ Wed Jul 24 14:10:42 HKT 2019 : Saving current JCE file: /etc/ranger/hadoopdev/cred.jceks to /etc/ranger/hadoopdev/.cred.jceks.20190724141042 ...
+ Wed Jul 24 14:10:44 HKT 2019 : Saving current JCE file: /etc/ranger/hadoopdev/cred.jceks to /etc/ranger/hadoopdev/.cred.jceks.20190724141044 ...
Ranger Plugin for hadoop has been enabled. Please restart hadoop to ensure that changes are effective.
1.4 通过管理控制台注册hdfs-plugin 服务.

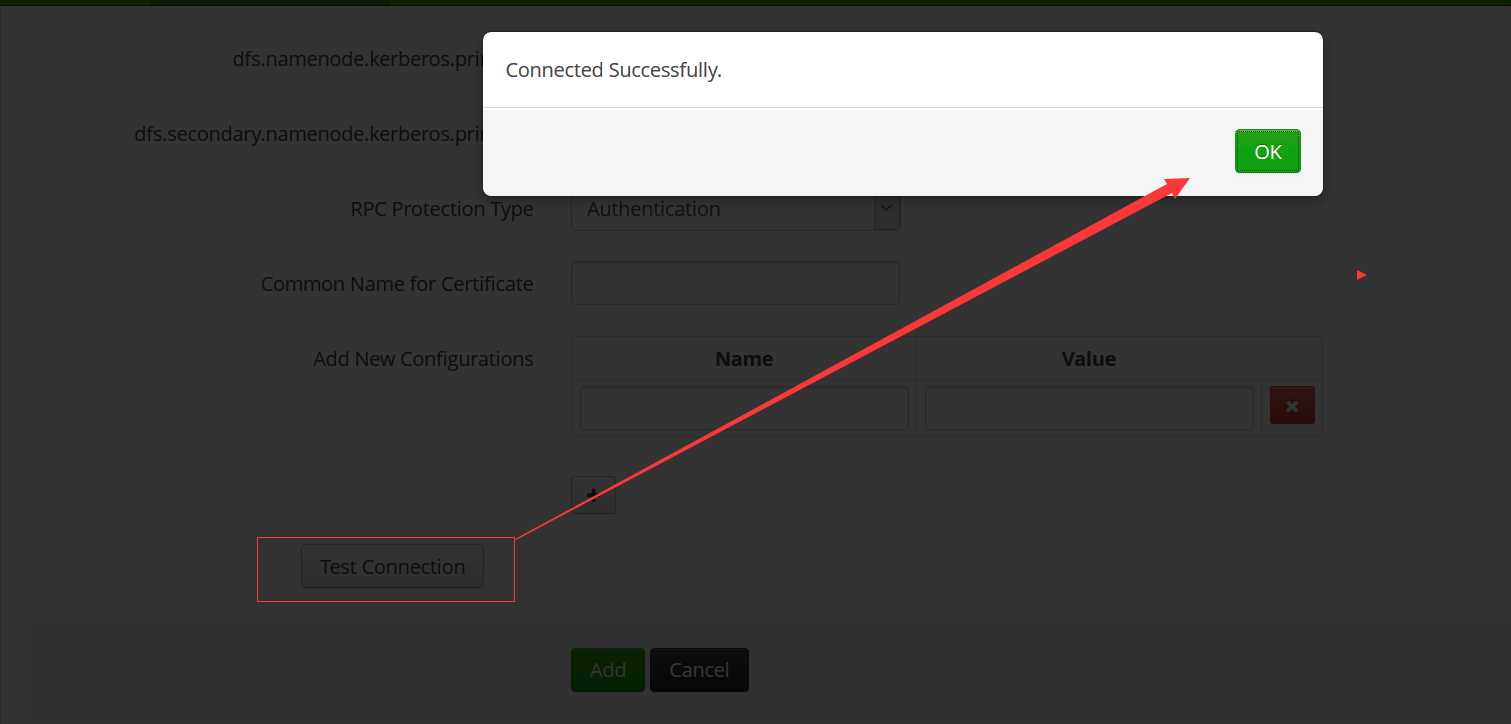

1.5 验证注册是否成功.
1.6 验证hdfs策略控制.
1.6.1 通过hdfs hadoop 用户创建测试目录,并赋予700权限.
hdfs dfs -mkdir /hdfs-hook
hdfs dfs -chmod 700 /hdfs-hook
hdfs dfs -put /home/hadoop/zhaoyuanjie /hdfs-hook
hdfs dfs -ls /hdfs-hook
hdfs dfs -chmod -R 700 /hdfs-hook
hdfs dfs -ls /hdfs-hook
Found 1 items
-rwx------ 1 hadoop supergroup 37 2019-07-24 14:23 /hdfs-hook/zhaoyuanjie

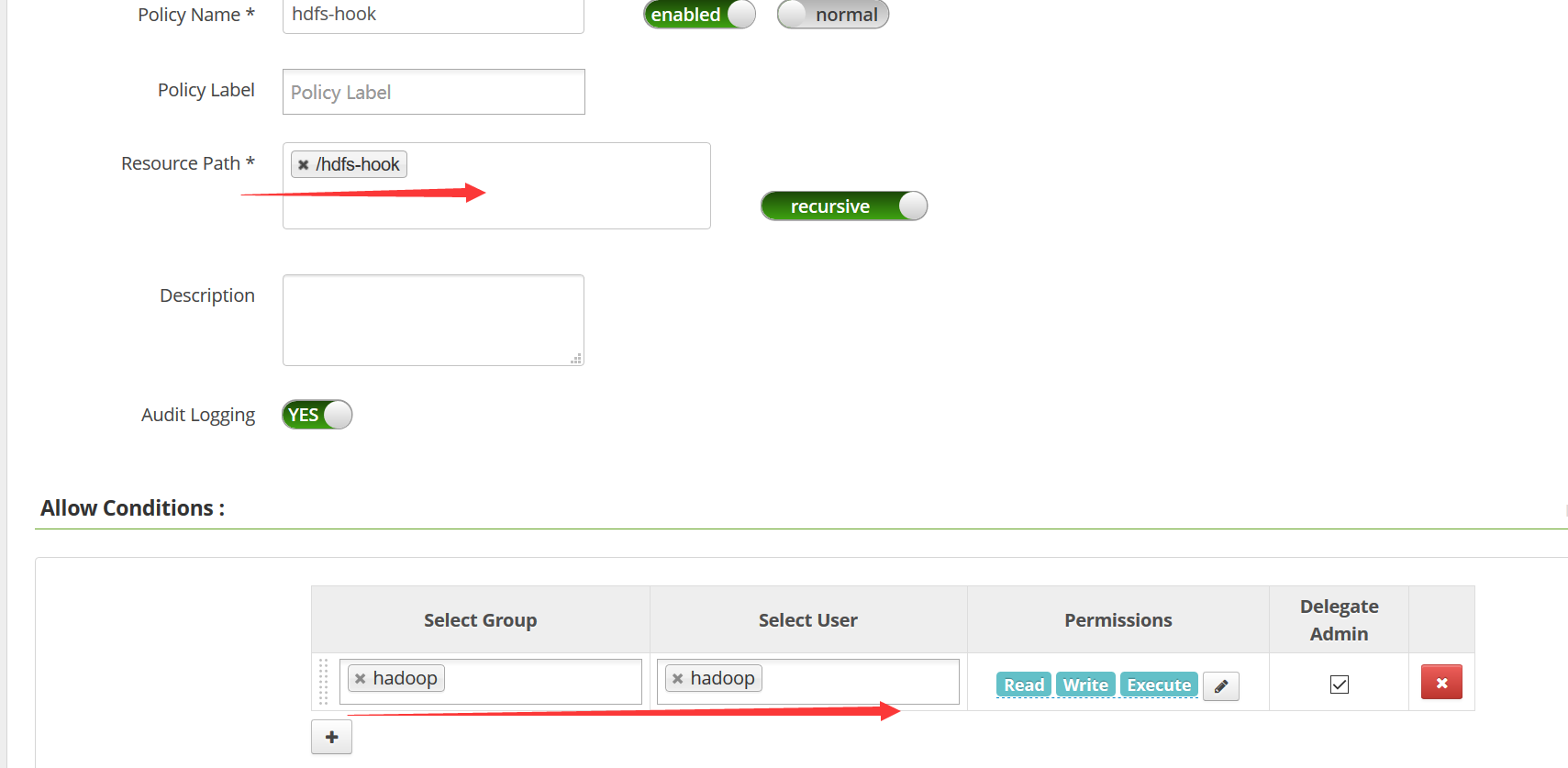

1.6.2 通过管理控制台设置该文件夹的访问控制权限.
设置hadoop对/hdfs-hook的可读可写可执行权限.
1.6.3 尝试使用cecgw用户访问该文件,拒绝，并查看审计日志.
cecgw@ubuntu:/opt/hadoop-2.7.7/etc/hadoop$ hdfs dfs -ls /hdfs-hook
ls: Permission denied: user=cecgw, access=READ_EXECUTE, inode="/hdfs-hook":hadoop:supergroup:d---------

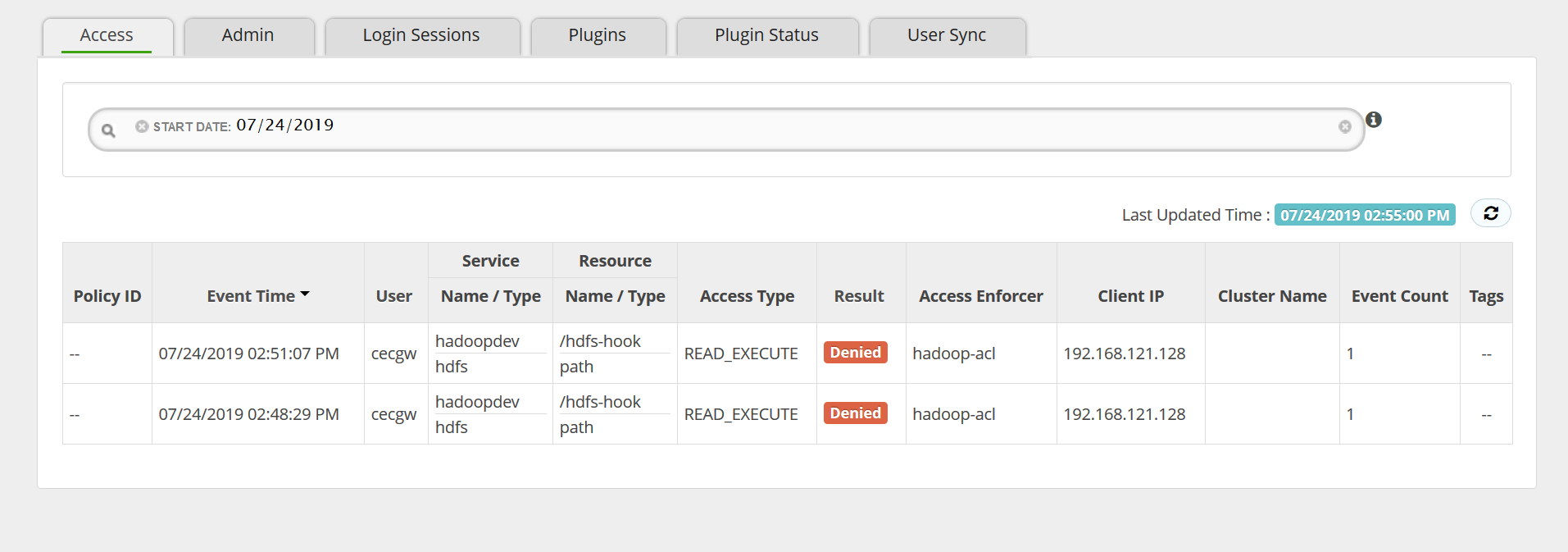

审计日志情况如下:

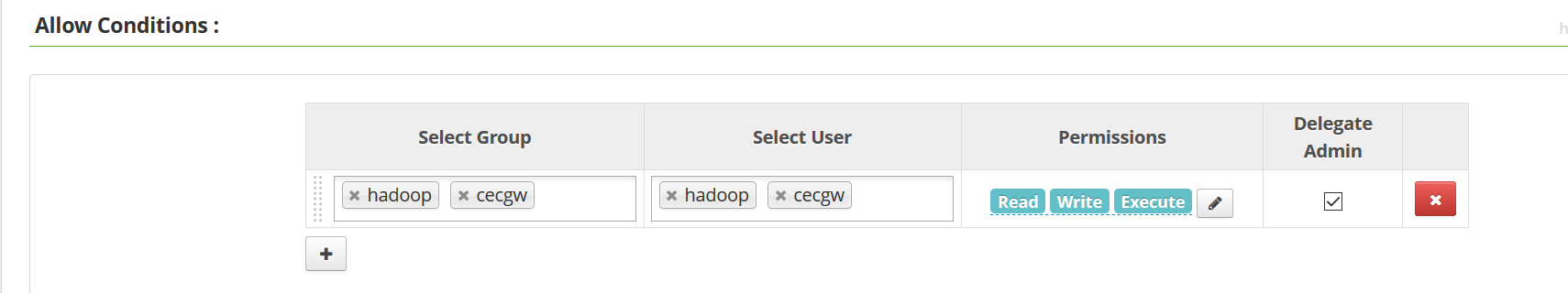

1.6.3 前端控制台添加cecgw用户对该文件的访问控制权限.

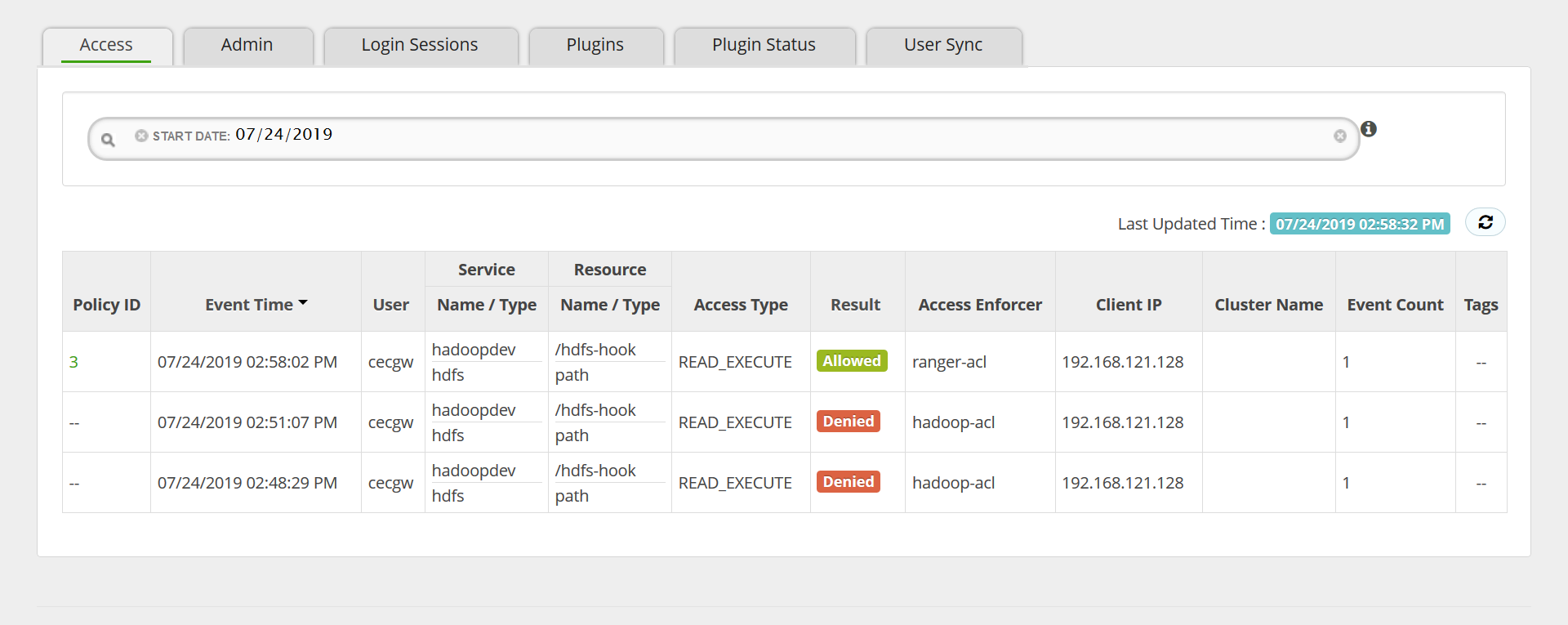

1.6.4 后端验证是否具备可读权限.验证可知，策略生效.
cecgw@ubuntu:/opt/hadoop-2.7.7/etc/hadoop$ hdfs dfs -ls /hdfs-hook
Found 1 items
---------- 1 hadoop supergroup 37 2019-07-24 14:23 /hdfs-hook/zhaoyuanjie
至此，hdfs-pluin 验证完毕.
ranger-hive-hook服务安装及使用¶
前置条件. hive正常运行. 安装节点. hive server2节点.
hadoop@ubuntu:/opt/hive/bin$ hive --service metastore 1>/dev/null 2>&1 &
[1] 7899
hadoop@ubuntu:/opt/hive/bin$ hive --service hiveserver2 1>/dev/null 2>&1 &
[2] 7976
hadoop@ubuntu:/opt/hive/bin$ netstat -anp|grep 10002
(Not all processes could be identified, non-owned process info
will not be shown, you would have to be root to see it all.)
tcp 0 0 0.0.0.0:10002 0.0.0.0:* LISTEN 7976/java
hadoop@ubuntu:/opt/hive/bin$
hadoop@ubuntu:/opt/hive/bin$
hadoop@ubuntu:/opt/hive/bin$ netstat -anp|grep 10000
(Not all processes could be identified, non-owned process info
will not be shown, you would have to be root to see it all.)
tcp 0 0 0.0.0.0:10000 0.0.0.0:* LISTEN 7976/java
1.0 解压plugin到指定目录.
tar -xzvf /home/cecgw/ranger-1.2.0-hive-plugin.tar.gz -C /opt/ranger-hook
1.1 修改hive-hook 配置文件.
hadoop@ubuntu:/opt/ranger-hook/ranger-1.2.0-hive-plugin$ grep -vE '^#|^$' install.properties
POLICY_MGR_URL=http://192.168.121.131:6080 # ranger-api
REPOSITORY_NAME=hivedev # 注意与控制台配置服务一致.
COMPONENT_INSTALL_DIR_NAME=/opt/hive # hive 安装路径
XAAUDIT.SOLR.FILE_SPOOL_DIR=/var/log/hive/audit/solr/spool
XAAUDIT.SOLR.ENABLE=true
XAAUDIT.SOLR.URL=http://192.168.121.131:8983/solr/ranger_audits # solr api
XAAUDIT.SOLR.USER=NONE
XAAUDIT.SOLR.PASSWORD=NONE
XAAUDIT.SOLR.ZOOKEEPER=NONE
XAAUDIT.HDFS.ENABLE=false
XAAUDIT.HDFS.HDFS_DIR=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit # solr api
XAAUDIT.HDFS.FILE_SPOOL_DIR=/var/log/hive/audit/hdfs/spool
XAAUDIT.HDFS.AZURE_ACCOUNTNAME=__REPLACE_AZURE_ACCOUNT_NAME
XAAUDIT.HDFS.AZURE_ACCOUNTKEY=__REPLACE_AZURE_ACCOUNT_KEY
XAAUDIT.HDFS.AZURE_SHELL_KEY_PROVIDER=__REPLACE_AZURE_SHELL_KEY_PROVIDER
XAAUDIT.HDFS.AZURE_ACCOUNTKEY_PROVIDER=__REPLACE_AZURE_ACCOUNT_KEY_PROVIDER
XAAUDIT.HDFS.IS_ENABLED=false
XAAUDIT.HDFS.DESTINATION_DIRECTORY=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit/%app-type%/%time:yyyyMMdd%
XAAUDIT.HDFS.LOCAL_BUFFER_DIRECTORY=__REPLACE__LOG_DIR/hive/audit/%app-type%
XAAUDIT.HDFS.LOCAL_ARCHIVE_DIRECTORY=__REPLACE__LOG_DIR/hive/audit/archive/%app-type%
XAAUDIT.HDFS.DESTINTATION_FILE=%hostname%-audit.log
XAAUDIT.HDFS.DESTINTATION_FLUSH_INTERVAL_SECONDS=900
XAAUDIT.HDFS.DESTINTATION_ROLLOVER_INTERVAL_SECONDS=86400
XAAUDIT.HDFS.DESTINTATION_OPEN_RETRY_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_FILE=%time:yyyyMMdd-HHmm.ss%.log
XAAUDIT.HDFS.LOCAL_BUFFER_FLUSH_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_ROLLOVER_INTERVAL_SECONDS=600
XAAUDIT.HDFS.LOCAL_ARCHIVE_MAX_FILE_COUNT=10
XAAUDIT.SOLR.IS_ENABLED=ture
XAAUDIT.SOLR.MAX_QUEUE_SIZE=1
XAAUDIT.SOLR.MAX_FLUSH_INTERVAL_MS=1000
XAAUDIT.SOLR.SOLR_URL=http://192.168.121.131:8983/solr/ranger_audits # solr api
SSL_KEYSTORE_FILE_PATH=/etc/hive/conf/ranger-plugin-keystore.jks
SSL_KEYSTORE_PASSWORD=myKeyFilePassword
SSL_TRUSTSTORE_FILE_PATH=/etc/hive/conf/ranger-plugin-truststore.jks
SSL_TRUSTSTORE_PASSWORD=changeit
UPDATE_XAPOLICIES_ON_GRANT_REVOKE=true
CUSTOM_USER=hadoop
CUSTOM_GROUP=hadoop
1.2 启动hive-plugin.
root@ubuntu:/opt/ranger-hook/ranger-1.2.0-hive-plugin# ./enable-hive-plugin.sh
Custom user and group is available, using custom user and group.
+ Wed Jul 24 15:55:29 HKT 2019 : hive: lib folder=/opt/hive/lib conf folder=/opt/hive/conf
+ Wed Jul 24 15:55:29 HKT 2019 : Saving /opt/hive/conf/ranger-hive-audit.xml to /opt/hive/conf/.ranger-hive-audit.xml.20190724-155529 ...
+ Wed Jul 24 15:55:29 HKT 2019 : Saving /opt/hive/conf/ranger-hive-security.xml to /opt/hive/conf/.ranger-hive-security.xml.20190724-155529 ...
+ Wed Jul 24 15:55:29 HKT 2019 : Saving /opt/hive/conf/ranger-policymgr-ssl.xml to /opt/hive/conf/.ranger-policymgr-ssl.xml.20190724-155529 ...
+ Wed Jul 24 15:55:29 HKT 2019 : Saving current config file: /opt/hive/conf/hiveserver2-site.xml to /opt/hive/conf/.hiveserver2-site.xml.20190724-155529 ...
+ Wed Jul 24 15:55:29 HKT 2019 : Saving current config file: /opt/hive/conf/ranger-hive-audit.xml to /opt/hive/conf/.ranger-hive-audit.xml.20190724-155529 ...
+ Wed Jul 24 15:55:29 HKT 2019 : Saving current config file: /opt/hive/conf/ranger-hive-security.xml to /opt/hive/conf/.ranger-hive-security.xml.20190724-155529 ...
+ Wed Jul 24 15:55:30 HKT 2019 : Saving current config file: /opt/hive/conf/ranger-policymgr-ssl.xml to /opt/hive/conf/.ranger-policymgr-ssl.xml.20190724-155529 ...
+ Wed Jul 24 15:55:30 HKT 2019 : Saving lib file: /opt/hive/lib/ranger-hive-plugin-impl to /opt/hive/lib/.ranger-hive-plugin-impl.20190724155530 ...
+ Wed Jul 24 15:55:30 HKT 2019 : Saving lib file: /opt/hive/lib/ranger-hive-plugin-shim-1.2.0.jar to /opt/hive/lib/.ranger-hive-plugin-shim-1.2.0.jar.20190724155530 ...
+ Wed Jul 24 15:55:30 HKT 2019 : Saving lib file: /opt/hive/lib/ranger-plugin-classloader-1.2.0.jar to /opt/hive/lib/.ranger-plugin-classloader-1.2.0.jar.20190724155530 ...
+ Wed Jul 24 15:55:33 HKT 2019 : Saving current JCE file: /etc/ranger/hivedev/cred.jceks to /etc/ranger/hivedev/.cred.jceks.20190724155533 ...
Ranger Plugin for hive has been enabled. Please restart hive to ensure that changes are effective.

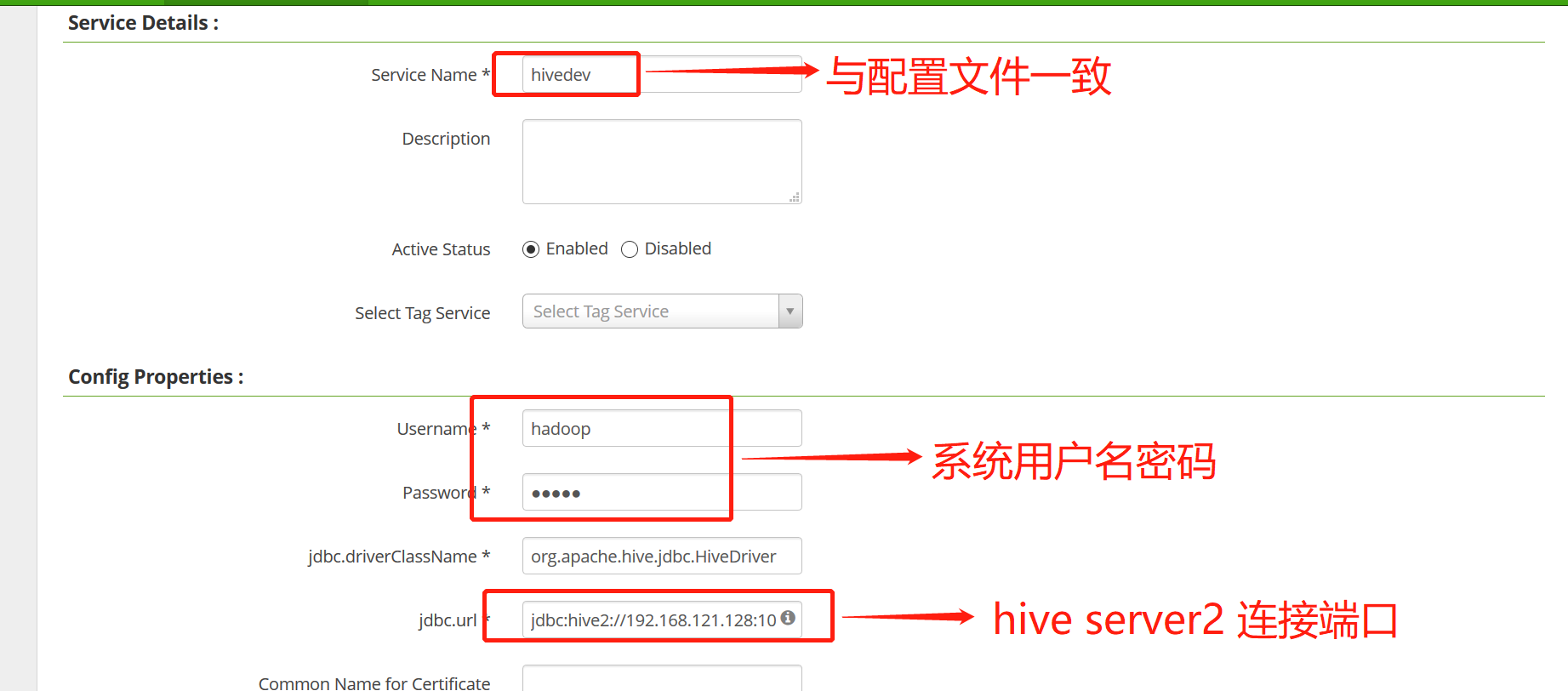

1.3 在控制台注册hivedev服务.

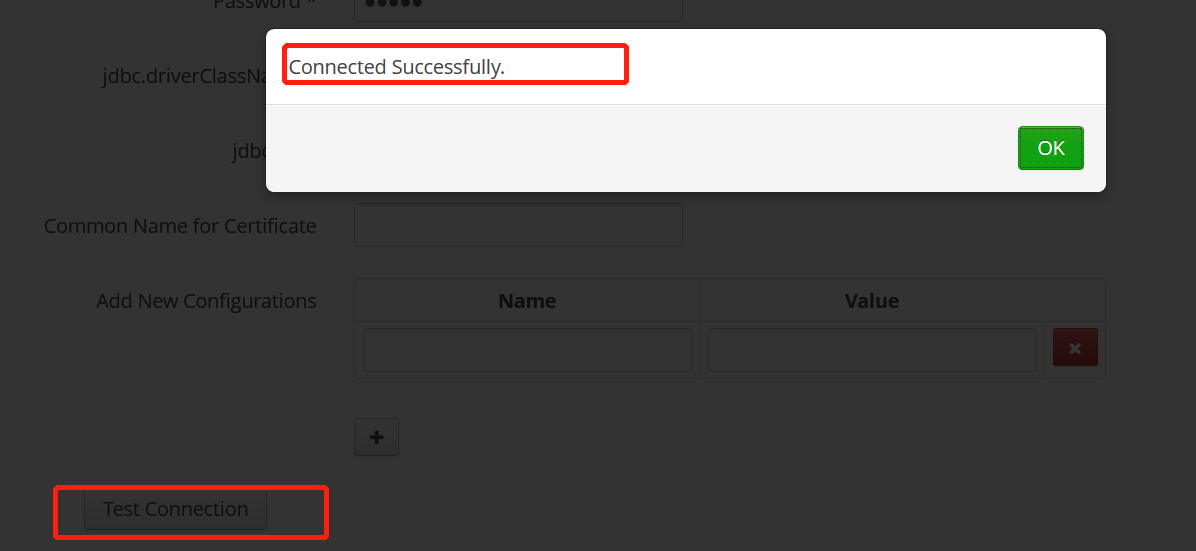

1.4 注册成功后，点击连接，显示成功.

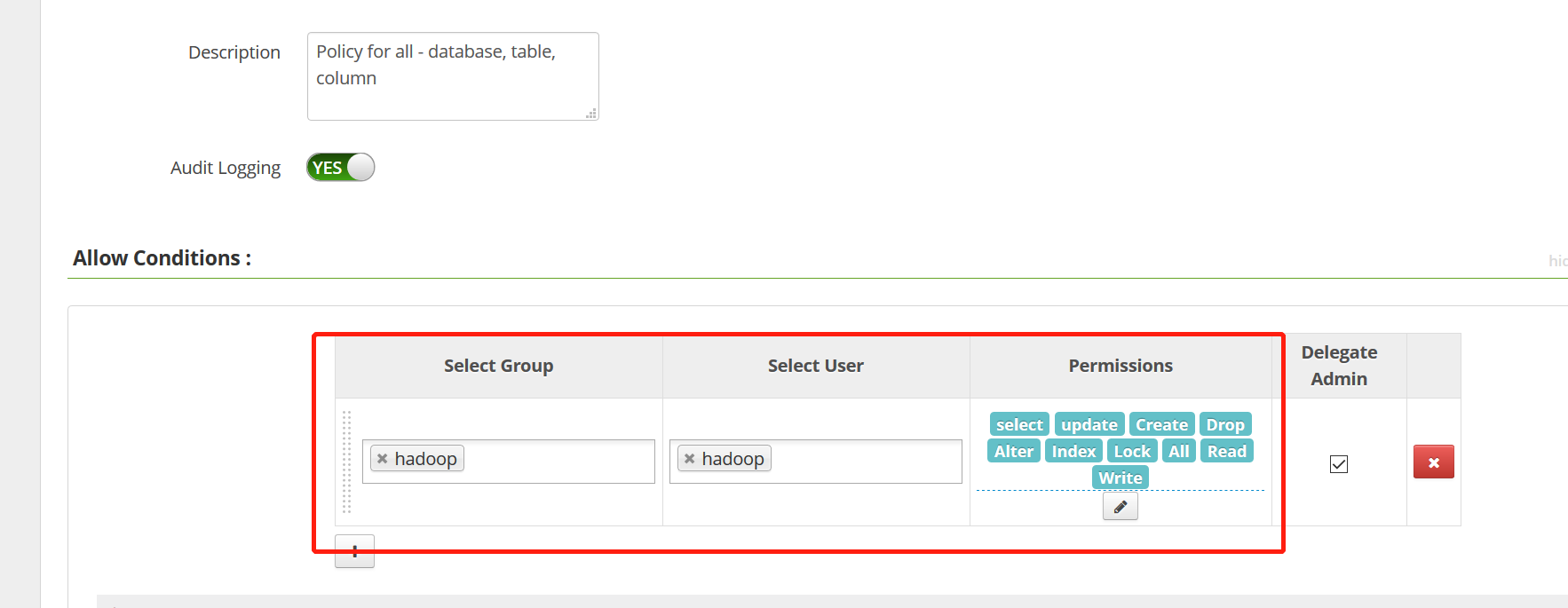

1.5 管理控制台配置hive策略.
1.6 后端访问查看.
hadoop@ubuntu:/opt/hive/bin$ beeline -n hadoop -u jdbc:hive2://localhost:10000
Connecting to jdbc:hive2://localhost:10000
Connected to: Apache Hive (version 2.3.4)
Driver: Hive JDBC (version 2.3.4)
Transaction isolation: TRANSACTION_REPEATABLE_READ
Beeline version 2.3.4 by Apache Hive
0: jdbc:hive2://localhost:10000> show tables;
+------------+
| tab_name |
+------------+
| employees |
| pokes |
+------------+

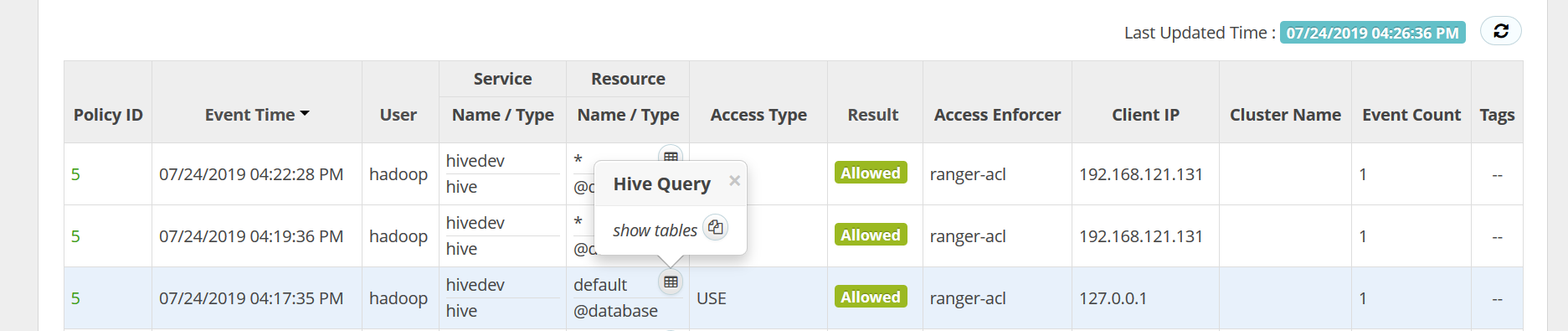

1.7 查看访问控制日志.
访问控制验证完毕，进一步，可验证行过滤及脱敏功能.
ranger-hbase-hook服务安装及使用¶
ranger 版本2.0 ranger-hook 2.0版本， hbase 2.1.1版本。
1.0 解压软件包。
root@big-1:/opt/ranger-hook# tar -xzvf ranger-2.0.0-hbase-plugin.tar.gz #解压ranger-2.0.0-hbase-plugin.tar.gz至安装目录。
1.1 修改hbase-hook 配置文件.
root@big-1:/opt/ranger-hook/ranger-2.0.0-hbase-plugin# grep -vE '^#|^$' install.properties
POLICY_MGR_URL=http://ranger-admin:6080 # ranger server 地址.
REPOSITORY_NAME=hbasedev # hbase server 服务名称.
COMPONENT_INSTALL_DIR_NAME=/opt/hbase # hbase 服务安装目录.
XAAUDIT.SUMMARY.ENABLE=true
XAAUDIT.SOLR.ENABLE=true
XAAUDIT.SOLR.URL=http://ranger-admin:8983/solr/ranger_audits # solr 地址
XAAUDIT.SOLR.USER=NONE
XAAUDIT.SOLR.PASSWORD=NONE
XAAUDIT.SOLR.ZOOKEEPER=NONE
XAAUDIT.SOLR.FILE_SPOOL_DIR=/var/log/hbase/audit/solr/spool
XAAUDIT.HDFS.ENABLE=false
XAAUDIT.HDFS.HDFS_DIR=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit
XAAUDIT.HDFS.FILE_SPOOL_DIR=/var/log/hbase/audit/hdfs/spool
XAAUDIT.HDFS.AZURE_ACCOUNTNAME=__REPLACE_AZURE_ACCOUNT_NAME
XAAUDIT.HDFS.AZURE_ACCOUNTKEY=__REPLACE_AZURE_ACCOUNT_KEY
XAAUDIT.HDFS.AZURE_SHELL_KEY_PROVIDER=__REPLACE_AZURE_SHELL_KEY_PROVIDER
XAAUDIT.HDFS.AZURE_ACCOUNTKEY_PROVIDER=__REPLACE_AZURE_ACCOUNT_KEY_PROVIDER
XAAUDIT.HDFS.IS_ENABLED=false
XAAUDIT.HDFS.DESTINATION_DIRECTORY=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit/%app-type%/%time:yyyyMMdd%
XAAUDIT.HDFS.LOCAL_BUFFER_DIRECTORY=__REPLACE__LOG_DIR/hbase/audit/%app-type%
XAAUDIT.HDFS.LOCAL_ARCHIVE_DIRECTORY=__REPLACE__LOG_DIR/hbase/audit/archive/%app-type%
XAAUDIT.HDFS.DESTINTATION_FILE=%hostname%-audit.log
XAAUDIT.HDFS.DESTINTATION_FLUSH_INTERVAL_SECONDS=900
XAAUDIT.HDFS.DESTINTATION_ROLLOVER_INTERVAL_SECONDS=86400
XAAUDIT.HDFS.DESTINTATION_OPEN_RETRY_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_FILE=%time:yyyyMMdd-HHmm.ss%.log
XAAUDIT.HDFS.LOCAL_BUFFER_FLUSH_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_ROLLOVER_INTERVAL_SECONDS=600
XAAUDIT.HDFS.LOCAL_ARCHIVE_MAX_FILE_COUNT=10
XAAUDIT.SOLR.IS_ENABLED=true # 设置为true
XAAUDIT.SOLR.MAX_QUEUE_SIZE=1
XAAUDIT.SOLR.MAX_FLUSH_INTERVAL_MS=1000
XAAUDIT.SOLR.SOLR_URL=http://ranger-admin:6083/solr/ranger_audits # solr api 接口地址.
SSL_KEYSTORE_FILE_PATH=/etc/hbase/conf/ranger-plugin-keystore.jks
SSL_KEYSTORE_PASSWORD=myKeyFilePassword
SSL_TRUSTSTORE_FILE_PATH=/etc/hbase/conf/ranger-plugin-truststore.jks
SSL_TRUSTSTORE_PASSWORD=changeit
UPDATE_XAPOLICIES_ON_GRANT_REVOKE=true
CUSTOM_USER=hadoop-1 # hadoop 用户名
CUSTOM_GROUP=hadoop-1 # hadoop 用户组
1.2 将hook 文件夹拷贝并复制到hbase 其他所有节点.
1.3 在各个节点启动hbase hook.
root@big-1:/opt/ranger-hook/ranger-2.0.0-hbase-plugin# ./enable-hbase-plugin.sh

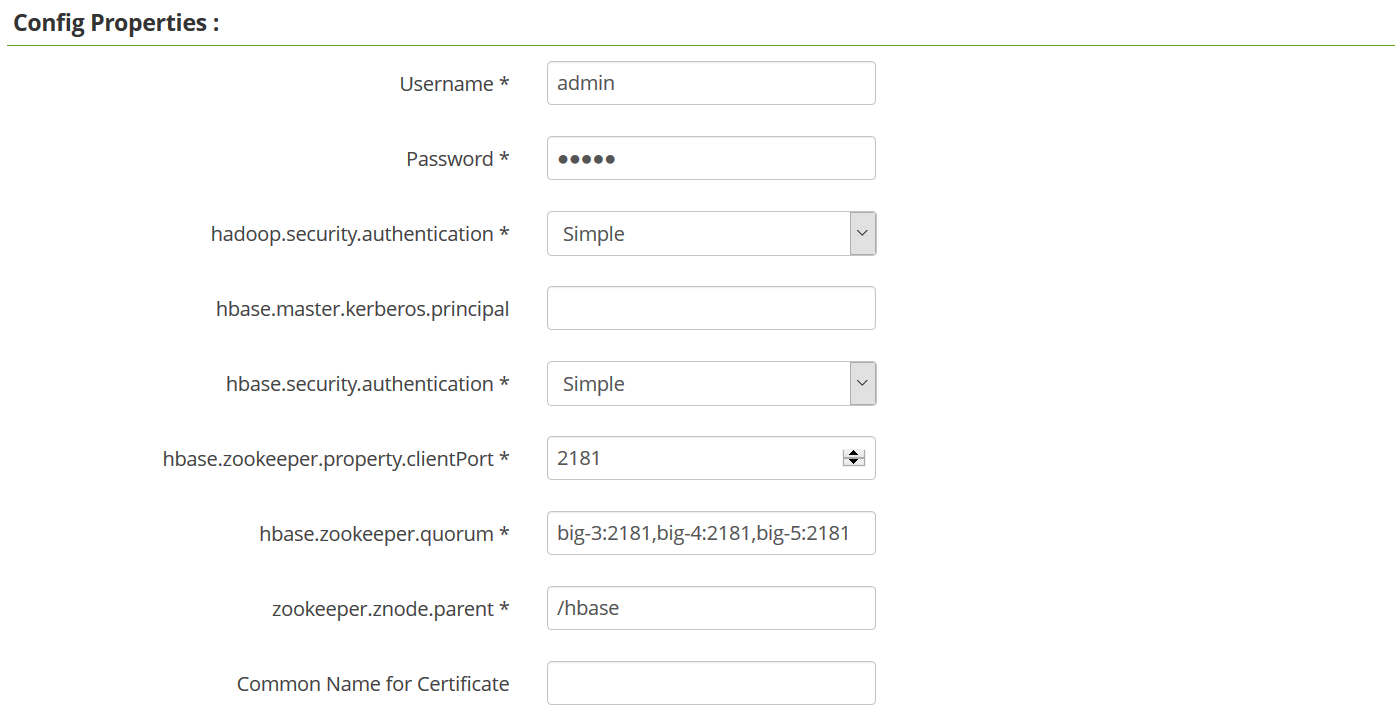

1.4 在服务控制台注册hbasedev服务.

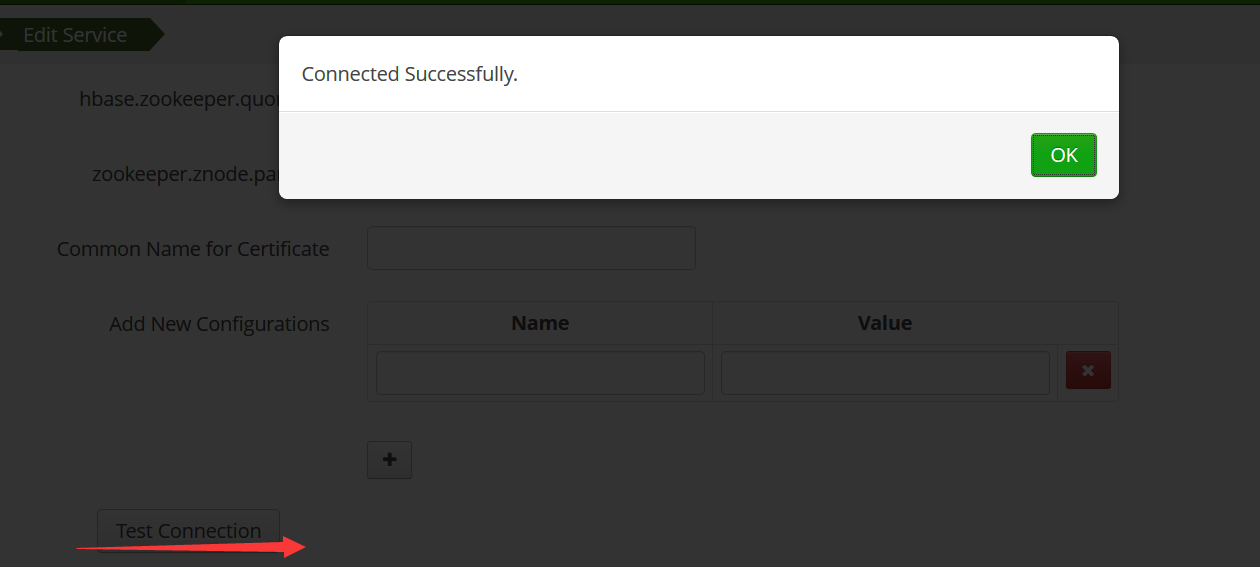

1.5 测试hbasedev是否连接成功.
1.6 在各个节点重启hbase 服务.

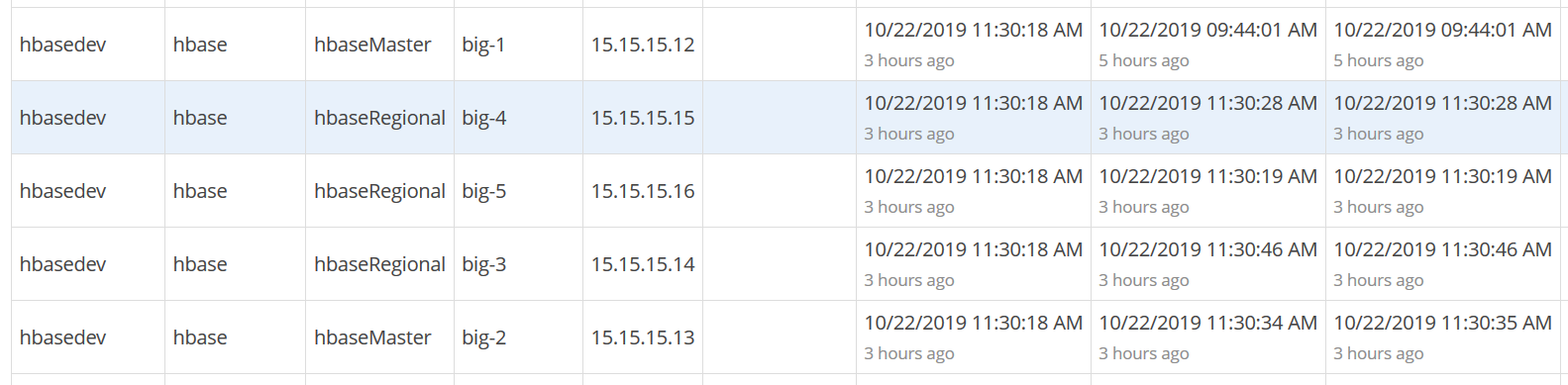

1.7 查看服务注册情况.

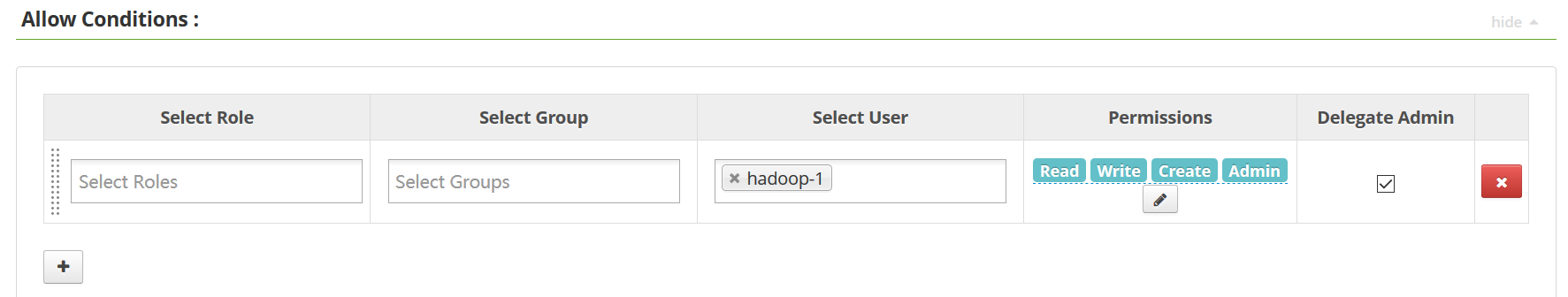

1.8 测试使用,使用hadoop-1用户，在hbase中创建表.
hbase(main):002:0> create 't1',{NAME => 'f1', VERSIONS => 3},{NAME => 'f2', VERSIONS => 1};
hbase(main):003:0* list
Created table t1
Took 2.7758 seconds
TABLE
t1
1 row(s)
Took 0.0154 seconds
=> ["t1"]
使用ubuntu 用户创建表,被拒绝.
hbase(main):093:0> create ‘hbase_test’, {NAME=>’cf1’},{NAME=>’cf2’}
ERROR: org.apache.hadoop.hbase.security.AccessDeniedException: Insufficient permissions for user ‘ubuntu’ (action=create)

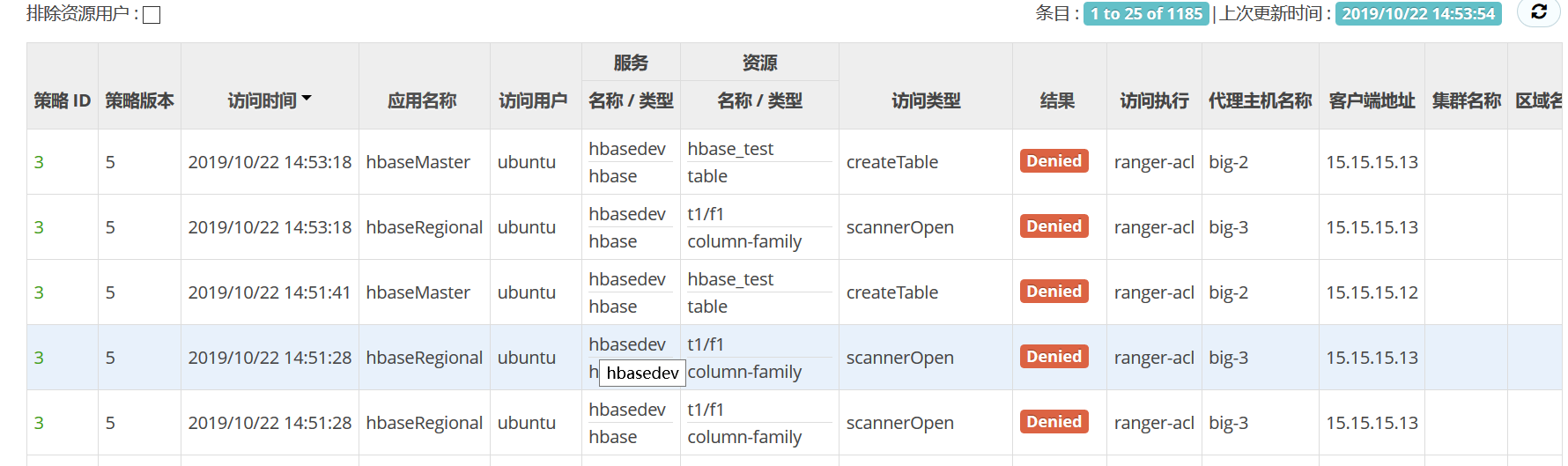

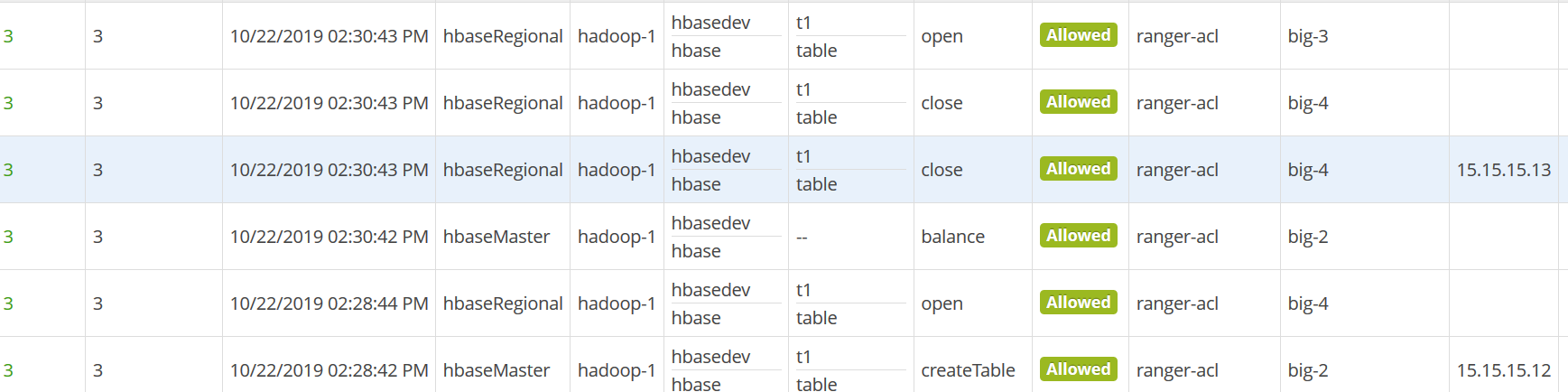

1.9 查看策略及日志生成情况.
ranger-elasticsearch-hook服务安装及使用¶
前置条件elasticsearch集群正常运行。elasticsearch 版本号为6.2.2.测试只有6.2.2 适配可行，ranger plugin 版本为2.0.0.
1.0 解压软件包。
root@ubuntu: tar -xzvf ranger-2.0.0-elasticsearch-plugin.tar.gz #解压ranger-2.0.0-elasticsearch-plugin.tar.gz至安装目录。
缺少几个软件包：
请从https://mvnrepository.com下载如下软件包：
com/ctc/wstx/io/InputBootstrapper --> hadoop-3.1.1/share/hadoop/common/lib/woodstox-core-5.0.3.jar
org/codehaus/stax2/XMLInputFactory2 --> hadoop-3.1.1/share/hadoop/common/lib/stax2-api-3.1.4.jar
org/apache/commons/configuration2/Configuration--> hadoop-3.1.1/share/hadoop/common/lib/commons-configuration2-2.1.1.jar
org/apache/htrace/core/Tracer$Builder --> hadoop-3.1.1/share/hadoop/common/lib/htrace-core4-4.1.0-incubating.jar
将上述四个软件包拷贝至
1：ranger-2.0.0-elasticsearch-plugin/install/lib
2：ranger-2.0.0-elasticsearch-plugin/lib/ranger-elasticsearch-plugin/ranger-elasticsearch-plugin-impl
两个目录下。
1.1 配置 plugin 配置文件。
root@ubuntu:/opt/ranger-hook/ranger-2.0.0-elasticsearch-plugin# grep -vE '^#|^$' install.properties
POLICY_MGR_URL=http://192.168.121.131:6080 # ranger admin 地址
REPOSITORY_NAME=elasticsearchdev # 前台创建的服务名称
COMPONENT_INSTALL_DIR_NAME=/opt/elasticsearch-6.2.2 # elasticsearch 安装目录；
XAAUDIT.SOLR.ENABLE=true # 修改为true，日志传送至solr
XAAUDIT.SOLR.URL=NONE
XAAUDIT.SOLR.USER=NONE
XAAUDIT.SOLR.PASSWORD=NONE
XAAUDIT.SOLR.ZOOKEEPER=NONE
XAAUDIT.SOLR.FILE_SPOOL_DIR=/var/log/elasticsearch/audit/solr/spool # 注意，该文件夹不要真实存在，如果存在不产生日志.
XAAUDIT.HDFS.ENABLE=false
XAAUDIT.HDFS.HDFS_DIR=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit
XAAUDIT.HDFS.FILE_SPOOL_DIR=/var/log/elasticsearch/audit/hdfs/spool
XAAUDIT.HDFS.AZURE_ACCOUNTNAME=__REPLACE_AZURE_ACCOUNT_NAME
XAAUDIT.HDFS.AZURE_ACCOUNTKEY=__REPLACE_AZURE_ACCOUNT_KEY
XAAUDIT.HDFS.AZURE_SHELL_KEY_PROVIDER=__REPLACE_AZURE_SHELL_KEY_PROVIDER
XAAUDIT.HDFS.AZURE_ACCOUNTKEY_PROVIDER=__REPLACE_AZURE_ACCOUNT_KEY_PROVIDER
XAAUDIT.HDFS.IS_ENABLED=false
XAAUDIT.HDFS.DESTINATION_DIRECTORY=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit/%app-type%/%time:yyyyMMdd%
XAAUDIT.HDFS.LOCAL_BUFFER_DIRECTORY=__REPLACE__LOG_DIR/elasticsearch/audit
XAAUDIT.HDFS.LOCAL_ARCHIVE_DIRECTORY=__REPLACE__LOG_DIR/elasticsearch/audit/archive
XAAUDIT.HDFS.DESTINTATION_FILE=%hostname%-audit.log
XAAUDIT.HDFS.DESTINTATION_FLUSH_INTERVAL_SECONDS=900
XAAUDIT.HDFS.DESTINTATION_ROLLOVER_INTERVAL_SECONDS=86400
XAAUDIT.HDFS.DESTINTATION_OPEN_RETRY_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_FILE=%time:yyyyMMdd-HHmm.ss%.log
XAAUDIT.HDFS.LOCAL_BUFFER_FLUSH_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_ROLLOVER_INTERVAL_SECONDS=600
XAAUDIT.HDFS.LOCAL_ARCHIVE_MAX_FILE_COUNT=10
XAAUDIT.SOLR.IS_ENABLED=true
XAAUDIT.SOLR.MAX_QUEUE_SIZE=1
XAAUDIT.SOLR.MAX_FLUSH_INTERVAL_MS=1000
XAAUDIT.SOLR.SOLR_URL=http://192.168.121.131:8983/solr/ranger_audits # solr admin api 调用接口。
SSL_KEYSTORE_FILE_PATH=/etc/hadoop/conf/ranger-plugin-keystore.jks
SSL_KEYSTORE_PASSWORD=myKeyFilePassword
SSL_TRUSTSTORE_FILE_PATH=/etc/hadoop/conf/ranger-plugin-truststore.jks
SSL_TRUSTSTORE_PASSWORD=changeit
CUSTOM_USER=elasticsearch # elasticsearch 运行用户
CUSTOM_GROUP=elasticsearch # elasticsearch 运行用户组
1.2 启动插件.
root@ubuntu:/opt/ranger-hook/ranger-2.0.0-elasticsearch-plugin# ./enable-elasticsearch-plugin.sh
Custom user and group is available, using custom user and group.
INFO: Creating /opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin
INFO: Changing ownership of /opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin to elasticsearch:elasticsearch
+ Mon Nov 18 14:19:04 HKT 2019 : elasticsearch: lib folder=/opt/elasticsearch-6.2.2/plugins conf folder=/opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin
+ Mon Nov 18 14:19:04 HKT 2019 : Saving current config file: /opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin/ranger-elasticsearch-audit.xml to /opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin/.ranger-elasticsearch-audit.xml.20191118-141904 ...
+ Mon Nov 18 14:19:04 HKT 2019 : Saving current config file: /opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin/ranger-elasticsearch-security.xml to /opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin/.ranger-elasticsearch-security.xml.20191118-141904 ...
+ Mon Nov 18 14:19:04 HKT 2019 : Saving current config file: /opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin/ranger-policymgr-ssl.xml to /opt/elasticsearch-6.2.2/config/ranger-elasticsearch-plugin/.ranger-policymgr-ssl.xml.20191118-141904 ...
+ Mon Nov 18 14:19:05 HKT 2019 : Saving current JCE file: /etc/ranger/elasticsearchdev/cred.jceks to /etc/ranger/elasticsearchdev/.cred.jceks.20191118141905 ...
+ Mon Nov 18 14:19:07 HKT 2019 : Saving current JCE file: /etc/ranger/elasticsearchdev/cred.jceks to /etc/ranger/elasticsearchdev/.cred.jceks.20191118141907 ...
Ranger Plugin for elasticsearch has been enabled. Please restart elasticsearch to ensure that changes are effective.
1.3 修改elasticsearch配置文件.
root@ubuntu:/opt/elasticsearch-6.2.2/config# vi jvm.options
在最后一行添加如下信息；
-Djava.security.policy=/opt/elasticsearch-6.2.2/plugins/ranger-elasticsearch-plugin/plugin-security.policy
1.4 修改jvm 安全机制；
root@ubuntu:/opt/elasticsearch-6.2.2/plugins/ranger-elasticsearch-plugin# vi plugin-security.policy
添加如下信息在grant中.
permission java.lang.RuntimePermission "loadLibrary.*";
permission java.lang.reflect.ReflectPermission "newProxyInPackage.com.kstruct.gethostname4j";
修改
permission java.io.FilePermission "<<ALL FILES>>", "read,write";
为-->
permission java.io.FilePermission "<<ALL FILES>>", "read,write,delete";
1.5 将上述修改复制到其余elasticsearch节点.
1.6 在前台中增加elasticsearchdev服务,并配置策略.
服务注册信息；
制定安全策略；
1.7 重启elasticsearch集群.
elasticsearch@ubuntu:/opt/elasticsearch-6.2.2$ ./bin/elasticsearch -d
# 注意查看日志是否有报错信息.
1.8 测试.
root@ubuntu:/opt/elasticsearch-6.2.2/config# curl http://localhost:9200
{"error":{"root_cause":[{"type":"status_exception","reason":"Error: User is null, the request requires user authentication."}],"type":"status_exception","reason":"Error: User is null, the request requires user authentication."},"status":401}root@ubuntu:/opt/elasticsearch-6.2.2/config# curl -u elasticsearch http://localhost:9200
Enter host password for user 'elasticsearch':
{"error":{"root_cause":[{"type":"status_exception","reason":"Error: User[elasticsearch] could not do action[cluster:monitor/main] on index[*]"}],"type":"status_exception","reason":"Error: User[elasticsearch] could not do action[cluster:monitor/main] on index[*]"},"status":403}
1.9 在ranger server端查看日志信息.
ranger+atlas联动¶
ranger+atlas可以实现基于标签的访问控制实施。atlas通过动态数据发现，在atlas前段将所要实施访问控制策略的字段定义标签后，可 通过与ranger联动，实现基于标签的访问控制。
本次验证以hive为例进行验证。前提条件：atlas服务正常，大数据集群服务正常，ranger服务正常.
在ranger-srever服务端，安装ranger-tagsync服务.
1.0 解压软件包.
root@ranger-server:/opt# tar -xzvf /home/cecgw/ranger-1.2.0-tagsync.tar.gz -C .
1.1 配置相关配置文件.
root@ranger-server:/opt/ranger-1.2.0-tagsync$ grep -vE '^#|^$' install.properties
TAG_DEST_RANGER_ENDPOINT = http://ranger-server:6080 # ranger server 地址
TAG_DEST_RANGER_SSL_CONFIG_FILENAME =
TAG_SOURCE_ATLAS_ENABLED = true
TAG_SOURCE_ATLAS_KAFKA_BOOTSTRAP_SERVERS = slaver-4:9092 # atlas kafka地址
TAG_SOURCE_ATLAS_KAFKA_ZOOKEEPER_CONNECT = slaver-4:2181 # atlas zookeeper kafka使用地址
TAG_SOURCE_ATLAS_KAFKA_ENTITIES_GROUP_ID = ranger_entities_consumer
TAG_SOURCE_ATLAS_KAFKA_SERVICE_NAME = kafka
TAG_SOURCE_ATLAS_KAFKA_SECURITY_PROTOCOL = PLAINTEXTSASL
TAG_SOURCE_ATLAS_KERBEROS_PRINCIPAL =
TAG_SOURCE_ATLAS_KERBEROS_KEYTAB =
TAG_SOURCE_ATLASREST_ENABLED = true
TAG_SOURCE_ATLASREST_ENDPOINT = http://atlas:21000 # atlas server地址
TAG_SOURCE_ATLASREST_DOWNLOAD_INTERVAL_IN_MILLIS = 900000
TAG_SOURCE_ATLASREST_USERNAME = admin # atlas登录用户名
TAG_SOURCE_ATLASREST_PASSWORD = admin # atlas 登录密码
TAG_SOURCE_FILE_ENABLED = true
TAG_SOURCE_FILE_FILENAME = /etc/ranger/data/tags.json
TAG_SOURCE_FILE_CHECK_INTERVAL_IN_MILLIS = 60000
TAGSYNC_ATLAS_TO_RANGER_SERVICE_MAPPING=primary,hive,hivedev # 与ranger控制台设置的服务保持一致
TAGSYNC_ATLAS_CUSTOM_RESOURCE_MAPPERS=
TAGSYNC_KEYSTORE_FILENAME = /etc/ranger/tagsync/conf/rangertagsync.jceks
TAG_SOURCE_ATLASREST_KEYSTORE_FILENAME = /etc/ranger/tagsync/conf/atlasuser.jceks
TAG_SOURCE_ATLASREST_SSL_CONFIG_FILENAME =
unix_user=ranger
unix_group=ranger
rangerTagsync_password=
logdir = log
TAGSYNC_PID_DIR_PATH=/var/run/ranger
is_secure = false
tagsync_principal=
tagsync_keytab=
hadoop_conf=/etc/hadoop/conf
1.2 启动相关服务.
在启动之前，检查kafka消费情况.
cecgw@atlas:/opt/kafka/bin$ ./kafka-consumer-groups.sh --new-consumer --bootstrap-server atlas:9092 --list ATLAS_ENTITIES
The [new-consumer] option is deprecated and will be removed in a future major release.The new consumer is used by default if the [bootstrap-server] option is provided.
Note: This will not show information about old Zookeeper-based consumers.
atlas
启动之前，可看到消费者只有一个.
启动服务.
root@ranger-server:/opt/ranger-1.2.0-tagsync# ./setup.sh
INFO: Installing ranger-tagsync .....
INFO: Direct Key not found:rangerTagsync_password
INFO: Direct Key not found:is_secure
INFO: Direct Key not found:TAGSYNC_PID_DIR_PATH
log4j:WARN No appenders could be found for logger (org.apache.hadoop.util.Shell).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder".
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See http://www.slf4j.org/codes.html#StaticLoggerBinder for further details.
tagadmin.user.password has been successfully created.
org.apache.hadoop.security.alias.JavaKeyStoreProvider has been updated.
log4j:WARN No appenders could be found for logger (org.apache.hadoop.util.Shell).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder".
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See http://www.slf4j.org/codes.html#StaticLoggerBinder for further details.
atlas.user.password has been successfully created.
org.apache.hadoop.security.alias.JavaKeyStoreProvider has been updated.
INFO: Creating ranger-tagsync-env-hadoopconfdir.sh file
INFO: Creating ranger-tagsync-env-piddir.sh file
WARN: core-site.xml file not found in provided hadoop conf path...
INFO: Completed ranger-tagsync installation.....
root@ranger-server:/opt/ranger-1.2.0-tagsync# ls
conf dist lib ranger-tagsync ranger-tagsync-upload.sh setup.sh updatetagadminpassword.py
conf.dist install.properties log ranger-tagsync-services.sh setup.py templates version
----------------------------------------------------------------------------------
root@ranger-server:/opt/ranger-1.2.0-tagsync# ./ranger-tagsync-services.sh start
Starting Apache Ranger Tagsync Service
Apache Ranger Tagsync Service with pid 3474 has started.
在启动之后，再次检查kafka消费情况.
cecgw@atlas:/opt/kafka/bin$ ./kafka-consumer-groups.sh --new-consumer --bootstrap-server atlas:9092 --list ATLAS_ENTITIES
The [new-consumer] option is deprecated and will be removed in a future major release.The new consumer is used by default if the [bootstrap-server] option is provided.
Note: This will not show information about old Zookeeper-based consumers.
atlas
ranger_entities_consumer # 启动tag sync后，新生成消费者.

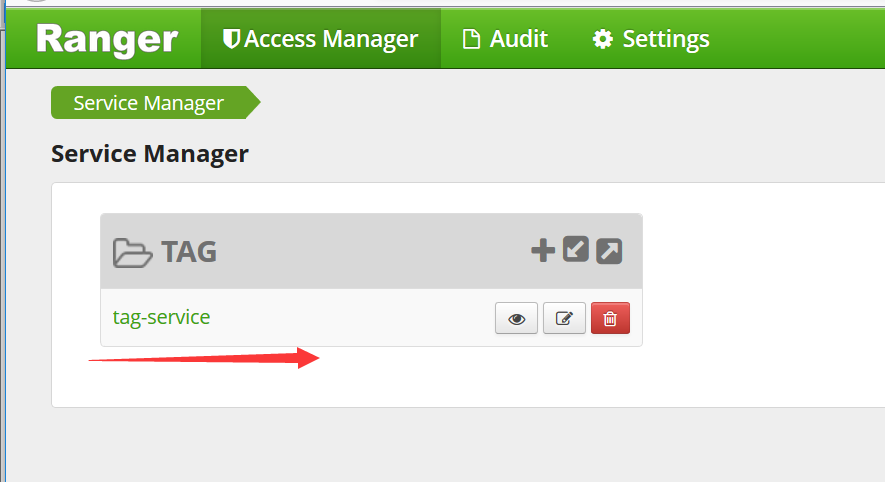

1.3 前台创建新的tag服务.

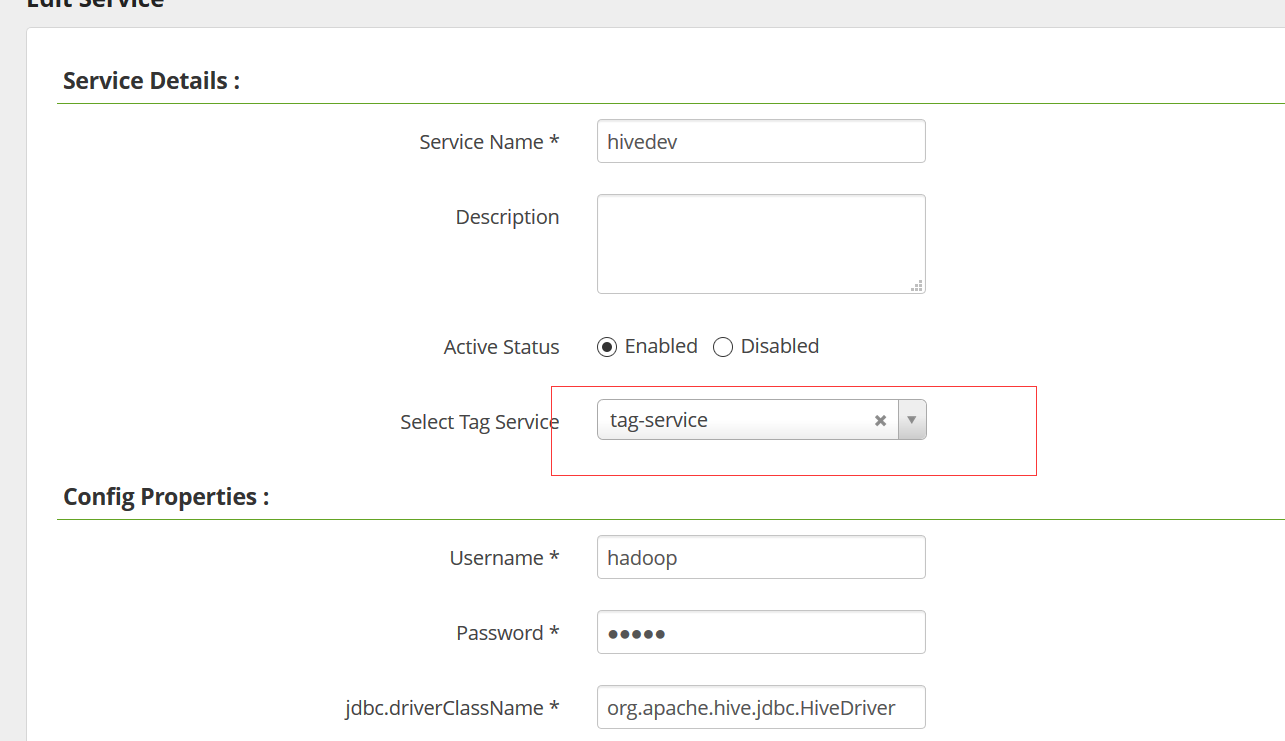

1.4 关联hivedev服务.

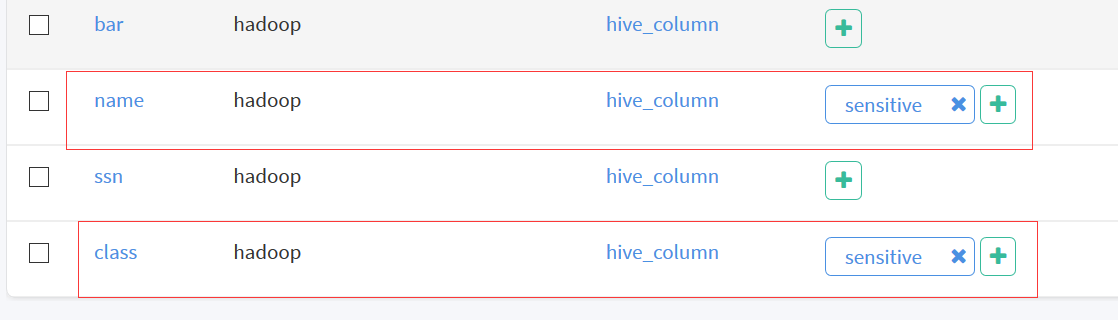

1.5 atlas端标记字段标签；在此我们同时标记两个表两个字段. 给hive中的students表class以及hank表name标记senstive敏感tag.

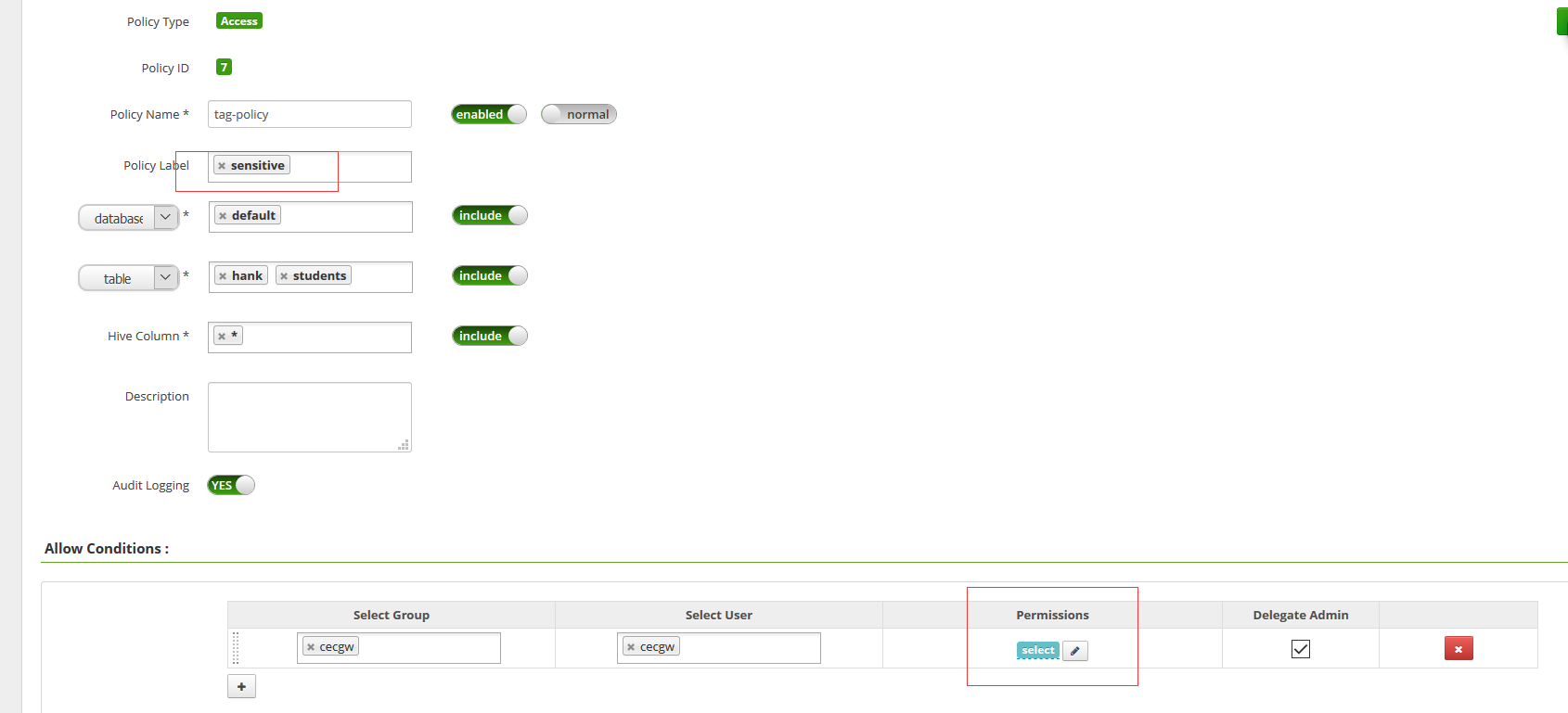

1.6 在ranger端设置该标签与策略之间的关联关系.
1.7 后端访问相关数据库.
0: jdbc:hive2://localhost:10000> select * from hank;
+-----------+------------+
| hank.ssn | hank.name |
+-----------+------------+
| 16 | john |
| 17 | robert |
| 18 | andrew |
| 19 | katty |
| 27 | edward |
| 29 | alan |
| 31 | kerry |
| 34 | tom |
| 35 | zack |
+-----------+------------+

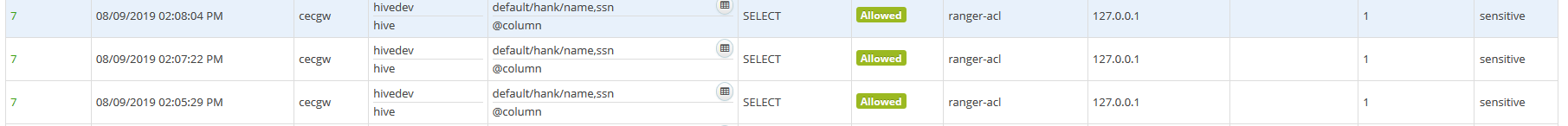

1.8 检查审计日志生成.
配置ranger SSL服务¶
- 证书生成
root@dcontroller:/opt/ranger-2.0.0-admin# mkdir keystore && cd keystore
root@dcontroller:/opt/ranger-2.0.0-admin/keystore# keytool -genkey -keyalg RSA -alias rangeradmin -keystore ranger-admin-keystore.jks -storepass xasecure -validity 3600 -keysize 2048
What is your first and last name?
[Unknown]: first last
What is the name of your organizational unit?
[Unknown]: com
What is the name of your organization?
[Unknown]: cn
What is the name of your City or Locality?
[Unknown]: bj
What is the name of your State or Province?
[Unknown]: bj
What is the two-letter country code for this unit?
[Unknown]: bj
Is CN=first last, OU=com, O=cn, L=bj, ST=bj, C=bj correct?
[no]: yes
Enter key password for <rangeradmin>
(RETURN if same as keystore password):
Re-enter new password:
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore ranger-admin-keystore.jks -destkeystore ranger-admin-keystore.jks -deststoretype pkcs12".
- 修改证书权限.
root@dcontroller:/opt/ranger-2.0.0-admin# chown -R controller:controller keystore/
root@dcontroller:/opt/ranger-2.0.0-admin/keystore# ll
total 12
drwxr-xr-x 2 controller controller 4096 Mar 15 11:15 ./
drwxr-xr-x 10 controller controller 4096 Mar 15 11:12 ../
-rw-r--r-- 1 controller controller 2206 Mar 15 11:15 ranger-admin-keystore.jks
- 修改配置.
<property>
<name>ranger.service.https.attrib.ssl.enabled</name>
<value>true</value>
</property>
<property>
<name>ranger.service.https.attrib.keystore.keyalias</name>
<value>rangeradmin</value>
</property>
<property>
<name>ranger.service.https.attrib.keystore.file</name>
<value>/opt/ranger-2.0.0-admin/keystore/ranger-admin-keystore.jks</value>
</property>
<property>
<name>ranger.service.https.port</name>
<value>6182</value>
</property>
<property>
<name>ranger.service.https.attrib.keystore.pass</name>
<value>xxxx</value>
</property>
<property>
<name>ranger.service.http.enabled</name>
<value>false</value>
<description />
</property>
- 重启ranger-admin restart.
- 访问https://controller:6182
- 查看证书信息.
root@dcontroller:/opt/ranger-2.0.0-admin/keystore# keytool -list -keystore ranger-admin-keystore.jks
Enter keystore password:
Keystore type: jks
Keystore provider: SUN
Your keystore contains 1 entry
rangeradmin, Mar 15, 2021, PrivateKeyEntry,
Certificate fingerprint (SHA1): 19:9B:F1:DF:C6:DD:0F:64:4F:E3:A7:0C:4E:CE:BE:58:A5:FD:83:E0
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore ranger-admin-keystore.jks -destkeystore ranger-admin-keystore.jks -deststoretype pkcs12".
配置usersync https 服务.¶
- 生成usersync 服务证书.
- ranger admin 导出公钥证书.
root@dcontroller:/etc/ranger/usersync/conf/cert# keytool -export -keystore /opt/ranger-2.0.0-admin/keystore/ranger-admin-keystore.jks -alias rangeradmin -file ranger-admin-trust.cer
Enter keystore password:
Certificate stored in file <ranger-admin-trust.cer>
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore /opt/ranger-2.0.0-admin/keystore/ranger-admin-keystore.jks -destkeystore /opt/ranger-2.0.0-admin/keystore/ranger-admin-keystore.jks -deststoretype pkcs12".
root@dcontroller:/etc/ranger/usersync/conf/cert# ll
total 16
drwxr-xr-x 2 root root 4096 Mar 15 13:55 ./
drwxr-xr-x 3 root root 4096 Jan 19 13:53 ../
-rw-r--r-- 1 root root 835 Mar 15 13:55 ranger-admin-trust.cer
-rw-r--r-- 1 root root 2203 Mar 15 13:48 unixauthservice.jks
- 将 ranger-admin 公钥证书导入usersync密钥存储文件.
root@dcontroller:/etc/ranger/usersync/conf/cert# keytool -import -file ranger-admin-trust.cer -alias rangeradmintrust -keystore mytruststore.jks -storepass *****
Owner: CN=firt, OU=cn, O=cn, L=cn, ST=cn, C=cn
Issuer: CN=firt, OU=cn, O=cn, L=cn, ST=cn, C=cn
Serial number: 4158cbb
Valid from: Mon Mar 15 13:23:44 HKT 2021 until: Thu Mar 10 13:23:44 HKT 2022
Certificate fingerprints:
MD5: CE:EC:58:F6:EB:BF:C4:AC:8A:A5:35:3C:2C:91:42:03
SHA1: 19:9B:F1:DF:C6:DD:0F:64:4F:E3:A7:0C:4E:CE:BE:58:A5:FD:83:E0
SHA256: F1:5A:61:6D:94:45:23:57:FB:E4:E3:D9:26:97:8C:70:1B:22:B1:52:38:CA:78:49:99:5D:08:5D:B1:41:4A:34
Signature algorithm name: SHA256withRSA
Subject Public Key Algorithm: 2048-bit RSA key
Version: 3
Extensions:
#1: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: 79 0E 8B 8B D5 89 1C 52 F4 F7 82 2F B4 9F A3 23 y......R.../...#
0010: 0C B2 EA FC ....
]
]
Trust this certificate? [no]: yes
Certificate was added to keystore
root@dcontroller:/etc/ranger/usersync/conf/cert# ll
total 20
drwxr-xr-x 2 root root 4096 Mar 15 13:57 ./
drwxr-xr-x 3 root root 4096 Jan 19 13:53 ../
-rw-r--r-- 1 root root 908 Mar 15 13:57 mytruststore.jks
-rw-r--r-- 1 root root 835 Mar 15 13:55 ranger-admin-trust.cer
-rw-r--r-- 1 root root 2203 Mar 15 13:48 unixauthservice.jks
- 修改user sync 配置文件.
POLICY_MGR_URL =https://dcontroller:6182
# SSL Authentication
AUTH_SSL_ENABLED=true
AUTH_SSL_KEYSTORE_FILE=/etc/ranger/usersync/conf/cert/unixauthservice.jks
AUTH_SSL_KEYSTORE_PASSWORD=*******
AUTH_SSL_TRUSTSTORE_FILE=/opt/ranger-2.0.0-usersync/conf/cert/mytruststore.jks
AUTH_SSL_TRUSTSTORE_PASSWORD=*******
- 关闭user sync 服务, 执行setup.sh 并重启.
新建用户，并测试。查看控制台，usersync服务的登录情况,及是否发现新建用户.
referance: https://docs.cloudera.com/HDPDocuments/HDP3/HDP-3.1.0/configuring-wire-encryption/content/configuring_ambari_ranger_ssl_using_a_self_signed_certificate_configuring_ranger_usersync.html
配置apache hive ranger hook 插件https 拉取策略¶
- 生成插件证书.
mkdir /opt/ranger-hook/keystore
root@big-1:/opt/ranger-hook/keystore# keytool -genkey -keyalg RSA -alias rangerAgent -keystore ranger-plugin-keystore.jks -storepass xxxx -validity 360 -keysize 2048
What is your first and last name?
[Unknown]: last
What is the name of your organizational unit?
[Unknown]: last
What is the name of your organization?
[Unknown]: last
What is the name of your City or Locality?
[Unknown]: last
What is the name of your State or Province?
[Unknown]: last
What is the two-letter country code for this unit?
[Unknown]: uc
Is CN=last, OU=last, O=last, L=last, ST=last, C=uc correct?
[no]: yes
Enter key password for <rangerAgent>
(RETURN if same as keystore password):
Re-enter new password:
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore ranger-plugin-keystore.jks -destkeystore ranger-plugin-keystore.jks -deststoretype pkcs12".
chown -R hadoop:hadoop keystore
- 导出ranger admin 公钥证书.
keytool -export -keystore ranger-admin-keystore.jks -alias rangeradmin -file ranger-admin-trust.cer
- 导入到插件密钥中.
root@big-1:/opt/ranger-hook/keystore# keytool -import -file ranger-admin-trust.cer -alias rangeradmintrust -keystore ranger-plugin-truststore.jks -storepass ******
Owner: CN=firt, OU=cn, O=cn, L=cn, ST=cn, C=cn
Issuer: CN=firt, OU=cn, O=cn, L=cn, ST=cn, C=cn
Serial number: 4158cbb
Valid from: Mon Mar 15 13:23:44 HKT 2021 until: Thu Mar 10 13:23:44 HKT 2022
Certificate fingerprints:
MD5: CE:EC:58:F6:EB:BF:C4:AC:8A:A5:35:3C:2C:91:42:03
SHA1: 19:9B:F1:DF:C6:DD:0F:64:4F:E3:A7:0C:4E:CE:BE:58:A5:FD:83:E0
SHA256: F1:5A:61:6D:94:45:23:57:FB:E4:E3:D9:26:97:8C:70:1B:22:B1:52:38:CA:78:49:99:5D:08:5D:B1:41:4A:34
Signature algorithm name: SHA256withRSA
Subject Public Key Algorithm: 2048-bit RSA key
Version: 3
Extensions:
#1: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: 79 0E 8B 8B D5 89 1C 52 F4 F7 82 2F B4 9F A3 23 y......R.../...#
0010: 0C B2 EA FC ....
]
]
Trust this certificate? [no]: yes
Certificate was added to keystore
root@big-1:/opt/ranger-hook/keystore# ls
ranger-admin-trust.cer ranger-plugin-keystore.jks ranger-plugin-truststore.jks
- 修改hive plugin 配置文件, install.properties
SSL_KEYSTORE_FILE_PATH=/opt/ranger-hook/keystore/ranger-plugin-keystore.jks
SSL_KEYSTORE_PASSWORD=xxxx
SSL_TRUSTSTORE_FILE_PATH=/opt/ranger-hook/keystore/ranger-plugin-truststore.jks
SSL_TRUSTSTORE_PASSWORD=xxxx
POLICY_MGR_URL=https://dcontroller:6182
- 修改hive plugin 配置文件.
- 导出plugin 证书. 并导入ranger admin.
# plugin 节点
root@big-1:/opt/ranger-hook/keystore# keytool -export -keystore ranger-plugin-keystore.jks -alias rangerAgent -file ranger-Agent-trust.cer -storepass xxxx
Certificate stored in file <ranger-Agent-trust.cer>
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore ranger-plugin-keystore.jks -destkeystore ranger-plugin-keystore.jks -deststoretype pkcs12".
root@big-1:/opt/ranger-hook/keystore# ls
ranger-admin-trust.cer ranger-Agent-trust.cer ranger-plugin-keystore.jks ranger-plugin-truststore.jks
*****************************
# ranger admin 节点.
root@dcontroller:/opt/ranger-2.0.0-usersync/conf/cert# keytool -import -file ranger-Agent-trust.cer -alias rangerAgentTrust -keystore /usr/lib/jdk/jre/lib/security/cacerts -storepass changeit
Owner: CN=last, OU=last, O=last, L=last, ST=last, C=uc
Issuer: CN=last, OU=last, O=last, L=last, ST=last, C=uc
Serial number: 1864ee39
Valid from: Mon Mar 15 14:59:28 HKT 2021 until: Thu Mar 10 14:59:28 HKT 2022
Certificate fingerprints:
MD5: 8B:BB:4C:71:39:0B:4F:7C:67:DF:97:44:C4:16:69:FB
SHA1: C9:FB:BF:86:F4:6F:CD:46:57:8D:D5:A0:A1:6F:67:09:B8:B2:B0:EF
SHA256: 01:84:1A:4D:E6:55:8E:D3:14:48:E2:93:EF:70:2F:BB:AD:1F:FA:D2:C3:D7:AB:69:B0:83:F7:18:19:73:88:FB
Signature algorithm name: SHA256withRSA
Subject Public Key Algorithm: 2048-bit RSA key
Version: 3
Extensions:
#1: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: EA 75 7B 95 64 A7 CD 7D 4A 59 53 D1 3B A1 C1 BA .u..d...JYS.;...
0010: 48 4E 99 A3 HN..
]
]
Trust this certificate? [no]: yes
Certificate was added to keystore
- 重启服务.
- 查看控制台ranger 插件状态，更新策略，并验证.
配置hdfs ranger plugin SSL¶
- 同样使用上述hive 生成的keystore 文件夹中的文件.
- 修改ranger hdfs hook 配置文件. root@big-1:/opt/ranger-hook/ranger-2.0.0-hdfs-plugin# vi install.properties 配置文件.
POLICY_MGR_URL=https://dcontroller:6182
# SSL Client Certificate Information
#
# Example:
SSL_KEYSTORE_FILE_PATH=/opt/ranger-hook/keystore/ranger-plugin-keystore.jks
SSL_KEYSTORE_PASSWORD=1qaz2wsx
SSL_TRUSTSTORE_FILE_PATH=/opt/ranger-hook/keystore/ranger-plugin-truststore.jks
SSL_TRUSTSTORE_PASSWORD=1qaz2wsx
- 修改hdfs hook 配置文件. root@big-1:/opt/ranger-hook/ranger-2.0.0-hdfs-plugin/install/conf.templates/enable# vi ranger-hdfs-security-changes.cfg
ranger.plugin.hdfs.policy.rest.ssl.config.file %COMPONENT_INSTALL_DIR_NAME%/etc/hadoop/conf/ranger-policymgr-ssl.xml mod create-if-not-exists
- 关闭hadoop集群，在namenode节点重新加载ranger hdfs plugin.并重启hadoop.
- 控制台查看hdfs plugin 更新状态.
- 新建策略,并验证.
ranger tag sync 配置SSL¶
- 在atlas server 导出server证书.
root@dfind:/opt/atlas/keystore# keytool -export -keystore atlaskeystore.jks -alias serverkey -file atlas-admin-trust.cer
Enter keystore password:
Certificate stored in file <atlas-admin-trust.cer>
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore atlaskeystore.jks -destkeystore atlaskeystore.jks -deststoretype pkcs12".
root@dfind:/opt/atlas/keystore# ls
atlas-admin-trust.cer atlas.cer atlas.crt atlas.jceks atlaskeystore.jks
- 将证书导出到ranger-tag-sync服务服务端.
root@dfind:/opt/atlas/keystore# scp -r atlas-admin-trust.cer cecgw@dcontroller:/home/cecgw
The authenticity of host 'dcontroller (15.15.15.29)' can't be established.
ECDSA key fingerprint is SHA256:OMAPqjcXqRYduMgxwrNZpdpADrTvKMrhi0IJeJ/6KKI.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'dcontroller,15.15.15.29' (ECDSA) to the list of known hosts.
cecgw@dcontroller's password:
atlas-admin-trust.cer 100% 849 300.5KB/s 00:00
# 在ranger tag sync服务中生成自签名证书.
root@dcontroller:/opt/ranger-2.0.0-tagsync/cert# keytool -genkey -keyalg RSA -alias rangertagagent -keystore ranger-tag-keystore.jks -storepass 1qaz2wsx -validity 360 -keysize 2048
What is your first and last name?
[Unknown]: last
What is the name of your organizational unit?
[Unknown]: last
What is the name of your organization?
[Unknown]: ls^Ha
What is the name of your City or Locality?
[Unknown]: last
What is the name of your State or Province?
[Unknown]: last
What is the two-letter country code for this unit?
[Unknown]: las
Is CN=last, OU=last, O=la, L=last, ST=last, C=las correct?
[no]: yes
Enter key password for <rangertagagent>
(RETURN if same as keystore password):
Re-enter new password:
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore ranger-tag-keystore.jks -destkeystore ranger-tag-keystore.jks -deststoretype pkcs12".
-rw-r--r-- 1 root root 2214 Mar 17 09:59 ranger-tag-keystore.jks
- 将atlas server公钥证书导出，创建ranger tag sync 服务的truststore,并将atlas server 证书导入.
# 在atlas server执行.
root@dfind:/opt/atlas/keystore# keytool -export -keystore atlaskeystore.jks -alias serverkey -file atlas-admin-trust.cer
Enter keystore password:
Certificate stored in file <atlas-admin-trust.cer>
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore atlaskeystore.jks -destkeystore atlaskeystore.jks -deststoretype pkcs12".
root@dfind:/opt/atlas/keystore# ll
total 32
drwxr-xr-x 2 insight insight 4096 Mar 16 15:31 ./
drwxr-xr-x 13 insight insight 4096 Mar 10 13:17 ../
-rw-r--r-- 1 root root 849 Mar 17 10:04 atlas-admin-trust.cer
-------------------------------------------------------------------------------------
将atlas-admin-trust.cer拷贝到ranger tag sync 服务器.
-------------------------------------------------------------------------------------
将server key导入到ranger tag 服务的trust key.
root@dcontroller:/opt/ranger-2.0.0-tagsync/cert# keytool -import -file atlas-admin-trust.cer -alias atlasserver -keystore ranger-tag-truststore.jks -storepass 1qaz2wsx
Owner: CN=CECGW, OU=CEC, O=CEC, L=Munich, ST=BY, C=DE
Issuer: CN=CECGW, OU=CEC, O=CEC, L=Munich, ST=BY, C=DE
Serial number: 400f5d83
Valid from: Wed Mar 10 13:17:16 HKT 2021 until: Sat Mar 08 13:17:16 HKT 2031
Certificate fingerprints:
MD5: A0:AC:11:3D:B3:1E:18:C9:73:3B:B6:50:3B:08:63:29
SHA1: 9C:71:48:C0:A7:3D:86:56:EC:ED:89:D2:97:1F:14:A6:01:26:A0:14
SHA256: C0:99:0D:7F:10:BD:83:43:CA:F3:BE:43:FB:98:4A:84:0B:D2:FA:64:73:A6:B8:DA:68:DD:0A:42:C0:40:4B:CC
Signature algorithm name: SHA1withRSA
Subject Public Key Algorithm: 2048-bit RSA key
Version: 3
Extensions:
#1: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: CD B7 3B 2A 5A 5D C2 AF AF 79 48 B5 69 39 3E B9 ..;*Z]...yH.i9>.
0010: 2E DD E9 DE ....
]
]
Trust this certificate? [no]: yes
Certificate was added to keystore
-rw-r--r-- 1 root root 917 Mar 17 15:02 ranger-tag-truststore.jks
- 将ranger server 公钥证书导出,并将atlas server 证书导入 ranger tag sync truststore.
root@dcontroller:/opt/ranger-2.0.0-admin/keystore# keytool -export -keystore ranger-admin-keystore.jks -alias rangeradmin -file ranger-admin-trust.cer
Enter keystore password:
Certificate stored in file <ranger-admin-trust.cer>
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore ranger-admin-keystore.jks -destkeystore ranger-admin-keystore.jks -deststoretype pkcs12".
root@dcontroller:/opt/ranger-2.0.0-admin/keystore# ll
total 16
drwxr-xr-x 2 controller controller 4096 Mar 17 15:06 ./
drwxr-xr-x 10 controller controller 4096 Mar 15 17:00 ../
-rw-r--r-- 1 controller controller 2191 Mar 15 13:23 ranger-admin-keystore.jks
-rw-r--r-- 1 root root 835 Mar 17 15:06 ranger-admin-trust.cer
--------------------------------------------------------------------------------------------------
导入 ranger tag truststore.
root@dcontroller:/opt/ranger-2.0.0-tagsync/cert# keytool -import -file ranger-admin-trust.cer -alias rangeradmin -keystore ranger-tag-truststore.jks -storepass 1qaz2wsx
Owner: CN=firt, OU=cn, O=cn, L=cn, ST=cn, C=cn
Issuer: CN=firt, OU=cn, O=cn, L=cn, ST=cn, C=cn
Serial number: 4158cbb
Valid from: Mon Mar 15 13:23:44 HKT 2021 until: Thu Mar 10 13:23:44 HKT 2022
Certificate fingerprints:
MD5: CE:EC:58:F6:EB:BF:C4:AC:8A:A5:35:3C:2C:91:42:03
SHA1: 19:9B:F1:DF:C6:DD:0F:64:4F:E3:A7:0C:4E:CE:BE:58:A5:FD:83:E0
SHA256: F1:5A:61:6D:94:45:23:57:FB:E4:E3:D9:26:97:8C:70:1B:22:B1:52:38:CA:78:49:99:5D:08:5D:B1:41:4A:34
Signature algorithm name: SHA256withRSA
Subject Public Key Algorithm: 2048-bit RSA key
Version: 3
Extensions:
#1: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: 79 0E 8B 8B D5 89 1C 52 F4 F7 82 2F B4 9F A3 23 y......R.../...#
0010: 0C B2 EA FC ....
]
]
Trust this certificate? [no]: yes
Certificate was added to keystore
- 将ranger tag sync 自签名证书导出,并导入atlas server 和 ranger server truststore.
root@dcontroller:/opt/ranger-2.0.0-tagsync/cert# keytool -export -keystore ranger-tag-keystore.jks -alias rangertagagent -file ranger-tag-trust.cer
Enter keystore password:
Certificate stored in file <ranger-tag-trust.cer>
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore ranger-tag-keystore.jks -destkeystore ranger-tag-keystore.jks -deststoretype pkcs12".
root@dcontroller:/opt/ranger-2.0.0-tagsync/cert# ll
total 32
drwxr-xr-x 3 controller controller 4096 Mar 17 15:12 ./
drwxr-xr-x 7 controller controller 4096 Mar 17 09:52 ../
-rwxr-xr-x 1 controller controller 849 Mar 16 15:42 atlas-admin-trust.cer*
drwxr-xr-x 2 root root 4096 Mar 17 10:08 conf/
-rw-r--r-- 1 root root 835 Mar 17 15:08 ranger-admin-trust.cer
-rw-r--r-- 1 root root 2214 Mar 17 09:59 ranger-tag-keystore.jks
-rw-r--r-- 1 root root 853 Mar 17 15:13 ranger-tag-trust.cer
-----------------------------------------------------------------------------------
导入ranger admin truststore.
root@dcontroller:/opt/ranger-2.0.0-tagsync/cert# keytool -import -file ranger-tag-trust.cer -alias rangertagagent -keystore /usr/lib/jdk/jre/lib/security/cacerts -storepass changeit
Owner: CN=last, OU=last, O=la, L=last, ST=last, C=las
Issuer: CN=last, OU=last, O=la, L=last, ST=last, C=las
Serial number: 3c90cdb8
Valid from: Wed Mar 17 09:59:40 HKT 2021 until: Sat Mar 12 09:59:40 HKT 2022
Certificate fingerprints:
MD5: E4:7B:41:AE:31:AF:67:1B:F5:FA:81:0C:F0:26:0B:C5
SHA1: A5:45:7D:C1:FE:83:FC:C0:D2:1E:E9:42:55:C8:C5:33:D9:D8:E9:70
SHA256: A6:4B:34:87:09:A2:0C:21:04:31:12:ED:5B:6B:65:BE:5E:9C:3E:8E:7F:16:C9:30:61:8B:E6:6A:6F:FD:09:A5
Signature algorithm name: SHA256withRSA
Subject Public Key Algorithm: 2048-bit RSA key
Version: 3
Extensions:
#1: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: C8 DB EA 78 28 B0 03 B1 64 4A E2 AA 00 76 54 6C ...x(...dJ...vTl
0010: F8 AB 26 25 ..&%
]
]
Trust this certificate? [no]: yes
Certificate was added to keystore
--------------------------------
导入 atlas truststre.
root@dfind:/opt/atlas/keystore# keytool -import -file ranger-tag-trust.cer -alias rangertagagent -keystore atlaskeystore.jks
Enter keystore password:
Owner: CN=last, OU=last, O=la, L=last, ST=last, C=las
Issuer: CN=last, OU=last, O=la, L=last, ST=last, C=las
Serial number: 3c90cdb8
Valid from: Wed Mar 17 09:59:40 HKT 2021 until: Sat Mar 12 09:59:40 HKT 2022
Certificate fingerprints:
MD5: E4:7B:41:AE:31:AF:67:1B:F5:FA:81:0C:F0:26:0B:C5
SHA1: A5:45:7D:C1:FE:83:FC:C0:D2:1E:E9:42:55:C8:C5:33:D9:D8:E9:70
SHA256: A6:4B:34:87:09:A2:0C:21:04:31:12:ED:5B:6B:65:BE:5E:9C:3E:8E:7F:16:C9:30:61:8B:E6:6A:6F:FD:09:A5
Signature algorithm name: SHA256withRSA
Subject Public Key Algorithm: 2048-bit RSA key
Version: 3
Extensions:
#1: ObjectId: 2.5.29.14 Criticality=false
SubjectKeyIdentifier [
KeyIdentifier [
0000: C8 DB EA 78 28 B0 03 B1 64 4A E2 AA 00 76 54 6C ...x(...dJ...vTl
0010: F8 AB 26 25 ..&%
]
]
Trust this certificate? [no]: yes
Certificate was added to keystore
Warning:
The JKS keystore uses a proprietary format. It is recommended to migrate to PKCS12 which is an industry standard format using "keytool -importkeystore -srckeystore atlaskeystore.jks -destkeystore atlaskeystore.jks -deststoretype pkcs12".
- 修改配置文件.
----修改配置文件1root@dcontroller:/opt/ranger-2.0.0-tagsync# vi install.properties
TAG_DEST_RANGER_ENDPOINT = https://dcontroller:6182
# SSL config file name for HTTPS messages to tag destination - Ranger
TAG_DEST_RANGER_SSL_CONFIG_FILENAME = /opt/ranger-2.0.0-tagsync/cert/conf/ranger-tagsync-policymgr-ssl.xml
TAG_SOURCE_ATLASREST_ENDPOINT = https://dfind:21443
TAG_SOURCE_ATLASREST_SSL_CONFIG_FILENAME =/opt/ranger-2.0.0-tagsync/cert/conf/atlas-tagsync-ssl.xml
# 配置 ranger-tagsync-policymgr-ssl.xml
<configuration>
<property>
<name>xasecure.policymgr.clientssl.keystore</name>
<value>/opt/ranger-2.0.0-tagsync/cert/ranger-tag-keystore.jks</value>
</property>
<property>
<name>xasecure.policymgr.clientssl.keystore.password</name>
<value>1qaz2wsx</value>
</property>
<property>
<name>xasecure.policymgr.clientssl.truststore</name>
<value>/opt/ranger-2.0.0-tagsync/cert/ranger-tag-truststore.jks</value>
</property>
<property>
<name>xasecure.policymgr.clientssl.truststore.password</name>
<value>1qaz2wsx</value>
</property>
<property>
<name>ranger.tagsync.keystore.file</name>
<value>/opt/ranger-2.0.0-tagsync/cert/ranger-tag-keystore.jks</value>
</property>
<property>
<name>xasecure.policymgr.clientssl.keystore.password</name>
<value>1qaz2wsx</value>
</property>
<property>
<name>ranger.tagsync.truststore.file</name>
<value>/opt/ranger-2.0.0-tagsync/cert/ranger-tag-truststore.jks</value>
</property>
<property>
<name>xasecure.policymgr.clientssl.truststore.password</name>
<value>1qaz2wsx</value>
</property>
<property>
<name>xasecure.policymgr.clientssl.keystore.credential.file</name>
<value>jceks://file/etc/ranger/tagsync/conf/rangertagsync.jceks</value>
<description>java keystore credential file</description>
<on-ambari-upgrade add="false" />
</property>
<property>
<name>xasecure.policymgr.clientssl.truststore.credential.file</name>
<value>jceks://file/etc/ranger/tagsync/conf/rangertagsync.jceks</value>
<description>java truststore credential file</description>
<on-ambari-upgrade add="false" />
</property>
</configuration>
Note
可以使用上述ranger hdfs plugin 生成的keystore, truststore,和cerd.jceks文件.
重启 tagsync, ranger-admin，服务，查看日志是否有错误, 在atlas端创建标签，在ranger 完成验证.
